VHM-T Variable Height Arm for Tablets Channel Mount with Angled Extension

Create Datasheet

Select options on the right and create a customized datasheet.

Request More Info

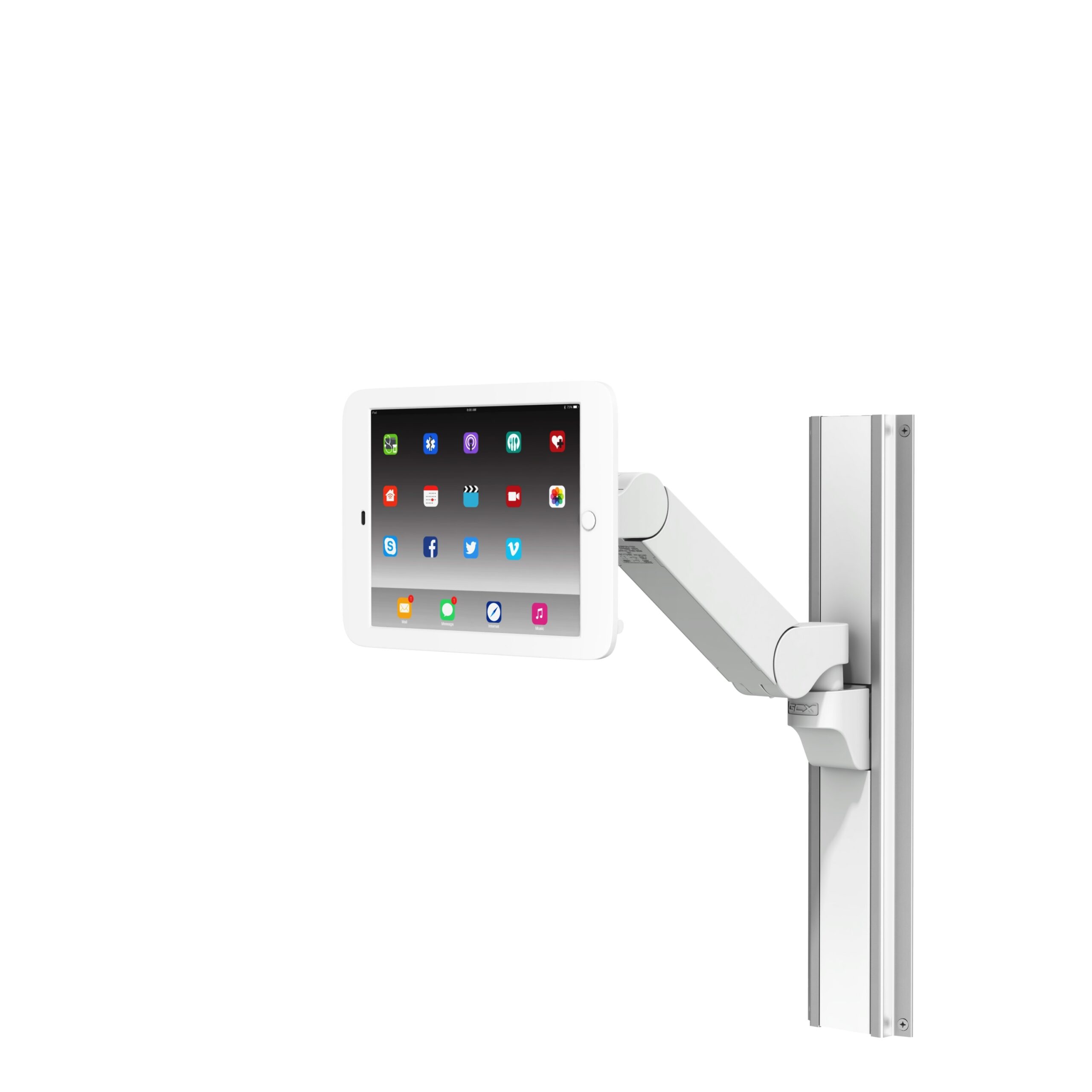

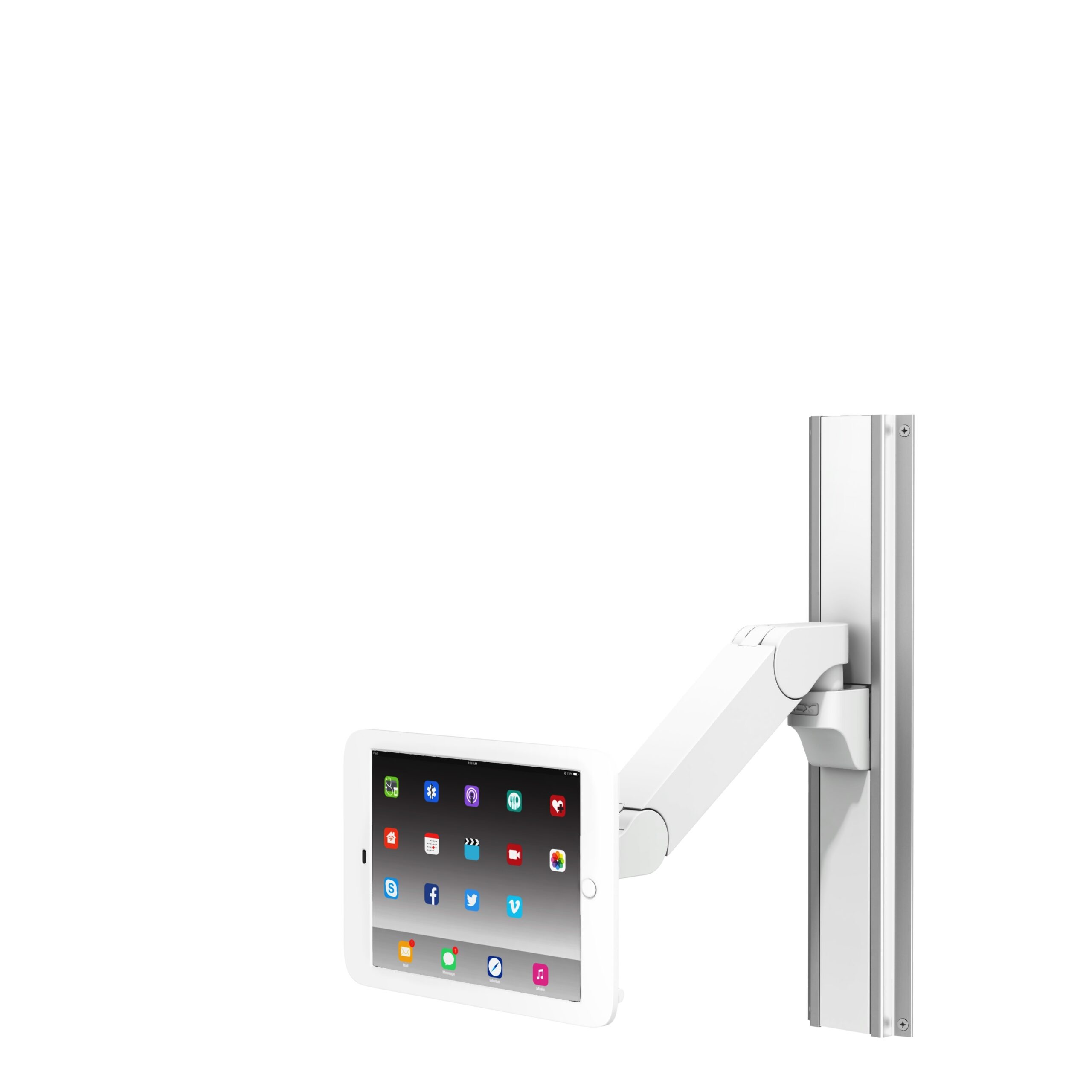

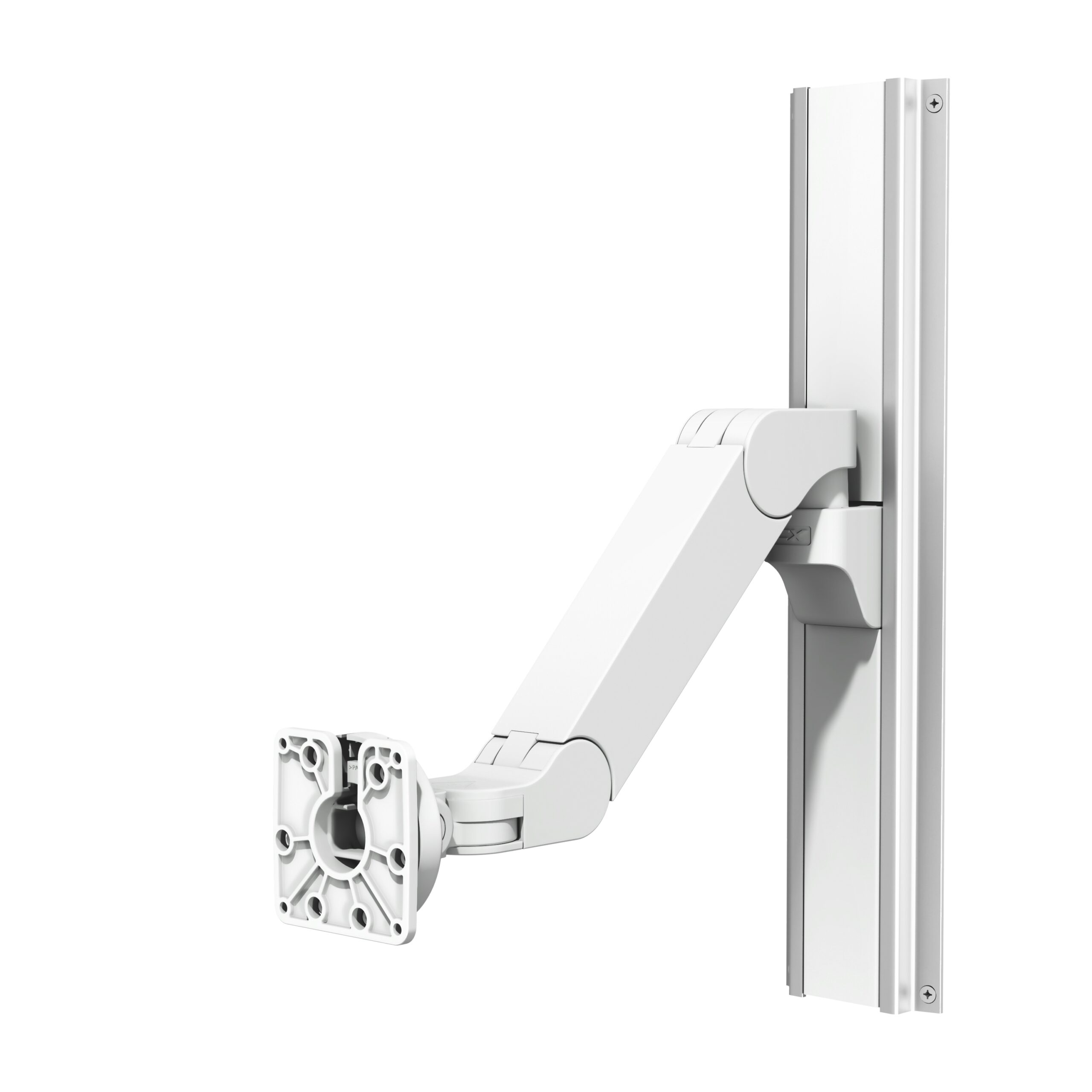

VHM-T Variable Height Arm for Tablets

Load Range: 1.5 – 4.0 lb / .7 – 1.8 kg

Small profile – space saving design

  • 75mm VESA Mounting Plate
  • Load Range: 1.5 – 4.0 lb / .7 – 1.8 kg
  • Vertical motion range: 12″ / 30.5 cm total travel
  • Up to two (2) cables can be accommodated
  • Maximum cable diameter: 0.25” / 0.635cm
  • Stops at front-end, Slide/Channel pivot point and midway point on extension version to prevent cable damage
  • No counterbalance adjustment required
  • Portrait/landscape adjustment with lockout


Part Number

WS-0017-01

WS-0017-03

Load Range: 3.5 - 6 lb / 1.6 - 2.7 kg

Small profile – space saving design

  • 75mm VESA Mounting Plate
  • Load Range: 3.5 – 6 lb / 1.6 – 2.7 kg
  • Vertical motion range: 12″ / 30.5 cm total travel
  • Up to two (2) cables can be accommodated
  • Maximum cable diameter: 0.25” / 6.35cm
  • Stops at front-end, Slide/Channel pivot point and midway point on extension version to prevent cable damage
  • No counterbalance adjustment required
  • Portrait/landscape adjustment with lockout


Part Number

WS-0017-02

WS-0017-04

Recommended Accessories
Apple iPad Tablet Enclosures with Locking/​Charging Dock

*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL

  • VESA 75mm Compatible
  • Color: White
  • Includes: Tablet Enclosure with Locking Charging Dock, Mounting Hardware and (2) Two Keys

Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.


Part Number

LIL-0003-24

LIL-0003-28

LIL-0003-29

LIL-0003-30

LIL-0003-33

Apple iPad Tablet Enclosures

*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL

  • VESA 75mm Compatible
  • Color: White
  • Includes: Tablet Enclosure, Mounting Adapter, Charging Cable and Mounting Hardware

Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.


Part Number

LIL-0004-28

LIL-0004-29

LIL-0004-30

LIL-0004-33

Samsung Tablet Enclosures

  • VESA 75mm compatible
  • Mounts in portrait or landscape orientation

Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories


Part Number

LIL-0003-32

LIL-0004-32

SA-0024-20

SA-0024-17

SA-0024-18

Microsoft Tablet Enclosures

Part Number

MS-0001-01

Channel Options

  • Seismic channel
  • Includes mounting hardware and instructions
  • OSHPD Pre-Approval: WC-0002-03, -05, -07, -09, -11, and -15.


Part Number

WC-0002-03

WC-0002-05

WC-0002-07

WC-0002-09

WC-0002-11

WC-0002-13

WC-0002-15

WC-0002-17
