Patient Tablet Arm
- Long reach allow easy patient access to tablet while in bed or sitting
- Pivot at the wall, plus swivel and tilt adjustments, for optimizing tablet-viewing angle
- Durable aluminum construction
- Handle is not always included
- Tablet enclosure sold separately
Note: Tablet is not included
60” / 152.4 cm Patient Tablet Arm
- 60″ / 152.4 cm Channel Mount Tablet Arm
- Rear pivot to mid-point of arm: 31″ / 78.7 cm
- Mid-point to tablet mounting mid-point: 28.5″ / 72.4 cm
- Tablet mounting plate (vertical span): 9″ / 22.9 cm
- Maximum reach (from wall surface to tablet mounting mid-point): 62″ / 157.5 cm
- Minimum reach: 20″ / 50.8 cm
- Tablet swivel:+/- 320 degrees
- Tablet tilt: 9″ / 22.9 cm arc
- Pivot (at Channel Slide): +/- 90 degrees
- Device interface: 75mm VESA (through-hole)
- Appropriate power supply must be provided by customer
PTE-0001-83
PTE-0001-86
Recommended Accessories
75mm VESA Lilitab Picture Mount Pro Apple iPad Enclosures with Locking/Charging Dock
*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL
- VESA 75mm Compatible
- Color: White
- Includes: Tablet Enclosure with Locking Charging Dock, Mounting Hardware and (2) Two Keys
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.
LIL-0003-34
LIL-0003-35
LIL-0003-36
LIL-0003-37
LIL-0003-38
LIL-0003-40
LIL-0003-41
LIL-0003-42
LIL-0003-44
75mm VESA Lilitab Apple iPad Enclosures
*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL
- VESA 75mm Compatible
- Color: White
- Includes: Tablet Enclosure, Mounting Adapter, Charging Cable and Mounting Hardware
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.
LIL-0004-34
LIL-0004-35
LIL-0004-36
LIL-0004-37
LIL-0004-38
LIL-0004-40
LIL-0004-41
LIL-0004-42
LIL-0004-44
Samsung Tablet Enclosures
- VESA 75mm compatible
- Mounts in portrait or landscape orientation
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories
SA-0024-20
SA-0024-17
SA-0024-18
LIL-0004-43
LIL-0003-43
Microsoft Tablet Enclosures
MS-0001-01
Channel Options

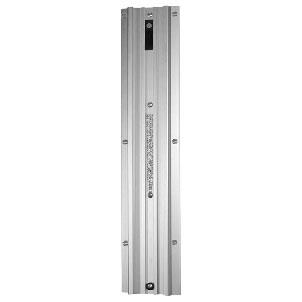

- Seismic channel
- Includes mounting hardware and instructions
- OSHPD Pre-Approval: WC-0002-03, -05, -07, -09, -11, and -15.
WC-0002-05
WC-0002-07
WC-0002-09
WC-0002-11
WC-0002-13
WC-0002-15
WC-0002-17
Datasheets
Installation Guides
- Mountable Tablet Enclosure with Locking Charging Dock Hardware Installation Instructions
DU-LIL-0003-XX - Mountable Tablet Enclosure Hardware Guide
DU-LIL-0004-XX - Tablet Enclosure Microsoft Surface 4 Pro and 2017 Surface Pro 75/100 VESA
DU-MS-0001-01 - PTA-45 & PTA-60 Patient Engagement Tablet Arms with GCX Channel Interface
DU-PTE-0001-2X - PTA-60HD Patient Engagement Long Arms with GCX Channel Interface
DU-PTE-0001-5X - Channel Mount Arm Counterweight Upgrade
DU-PTE-0001-90 - Samsung Galaxy Tab E 9.6”
DU-SA-0024-17 - Tablet Enclosure Samsung Galaxy Tab S3 75/100 VESA
DU-SA-0024-18
Create Product Datasheet
4ft Arm Solo unfolded L

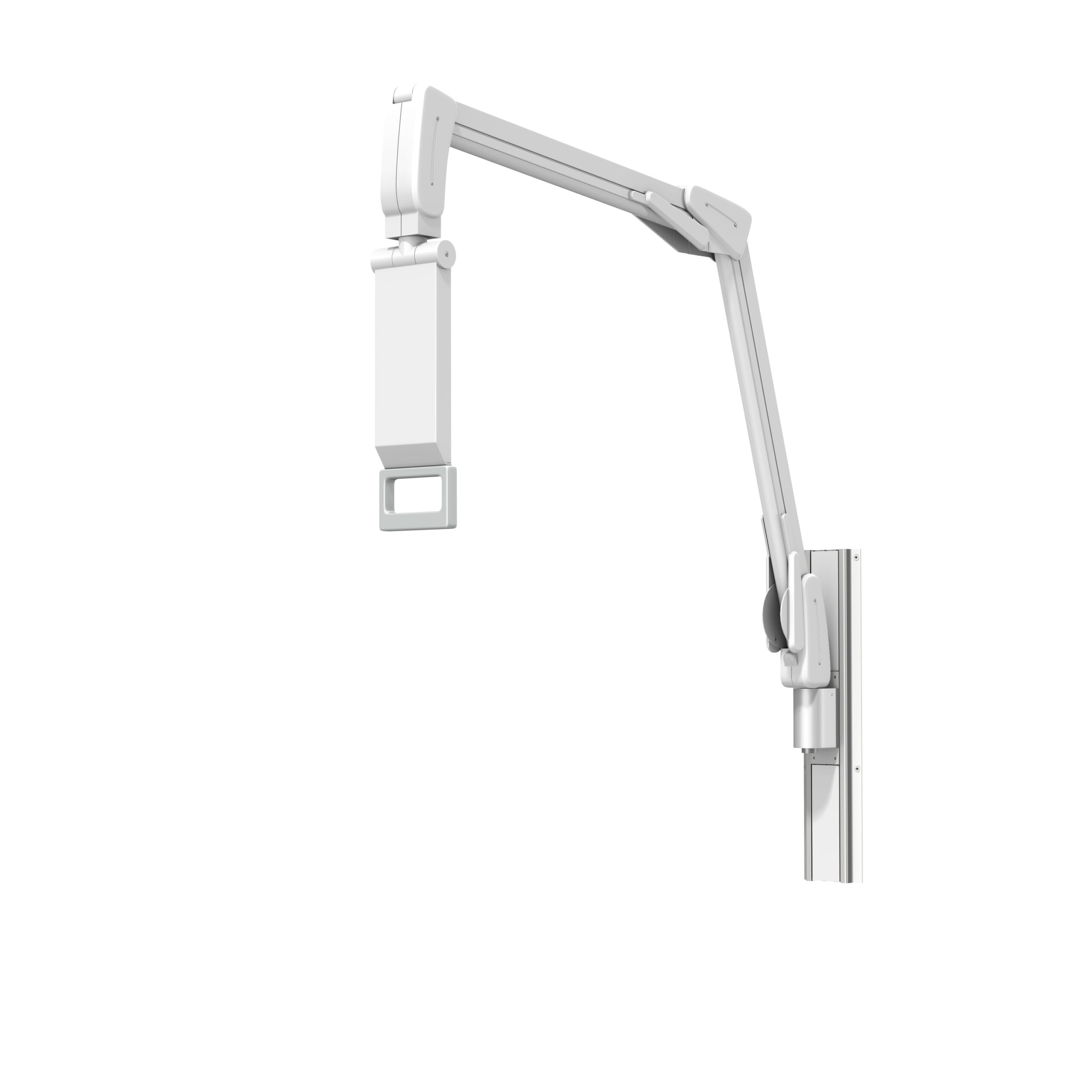

4ft Arm Solo unfolded U

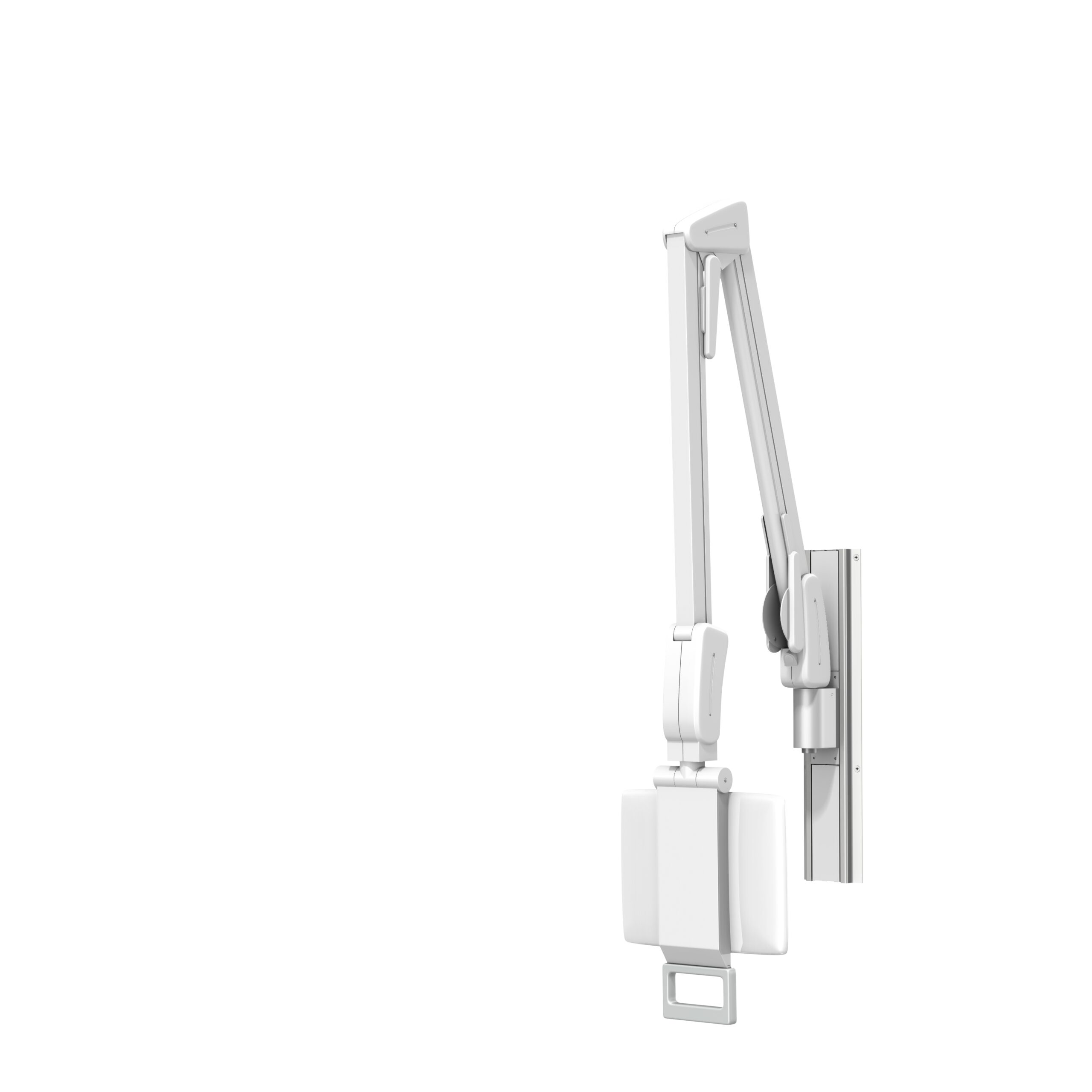

4ft Arm Solo folded L

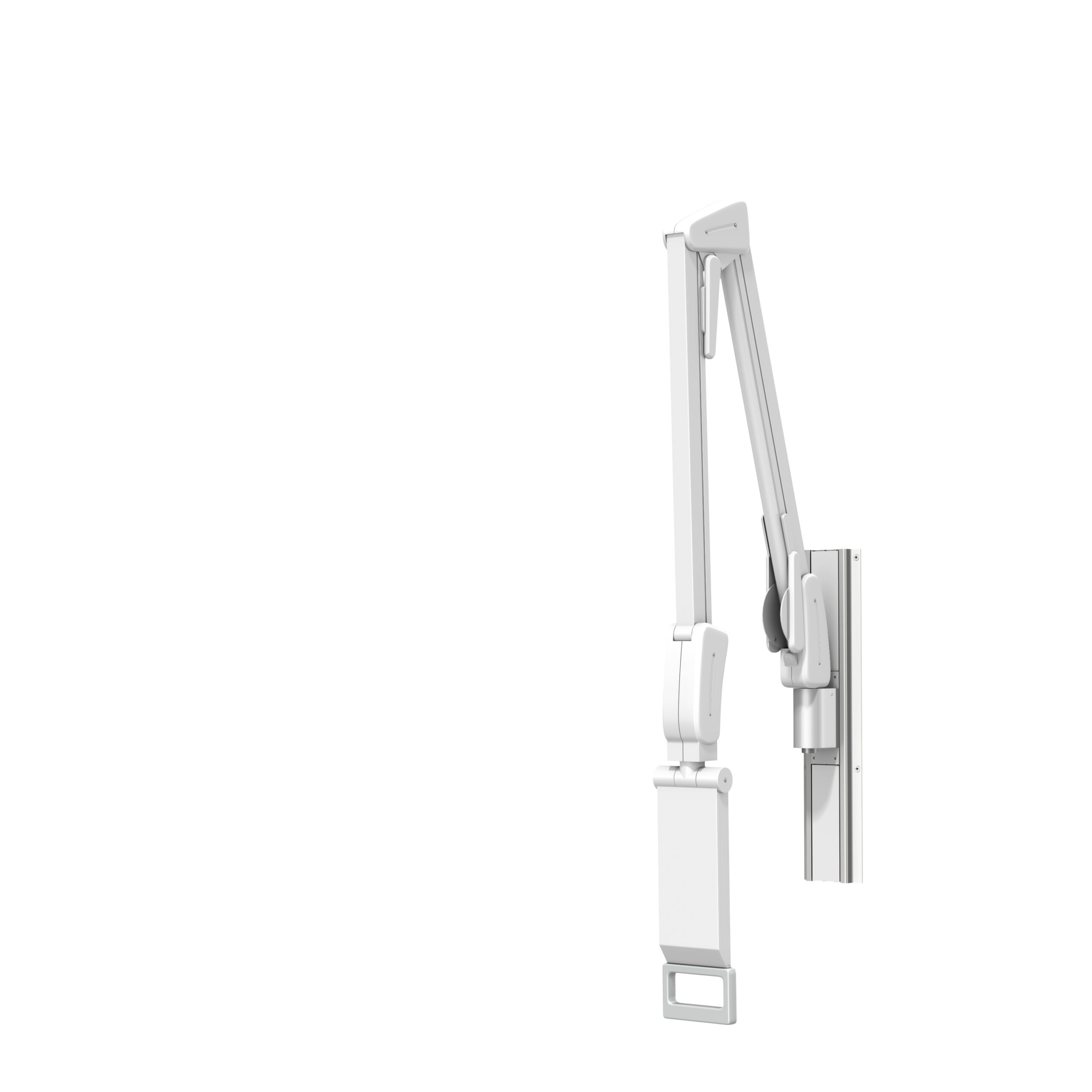

4ft Arm Solo folded U
4ft Tablet Arm Side L

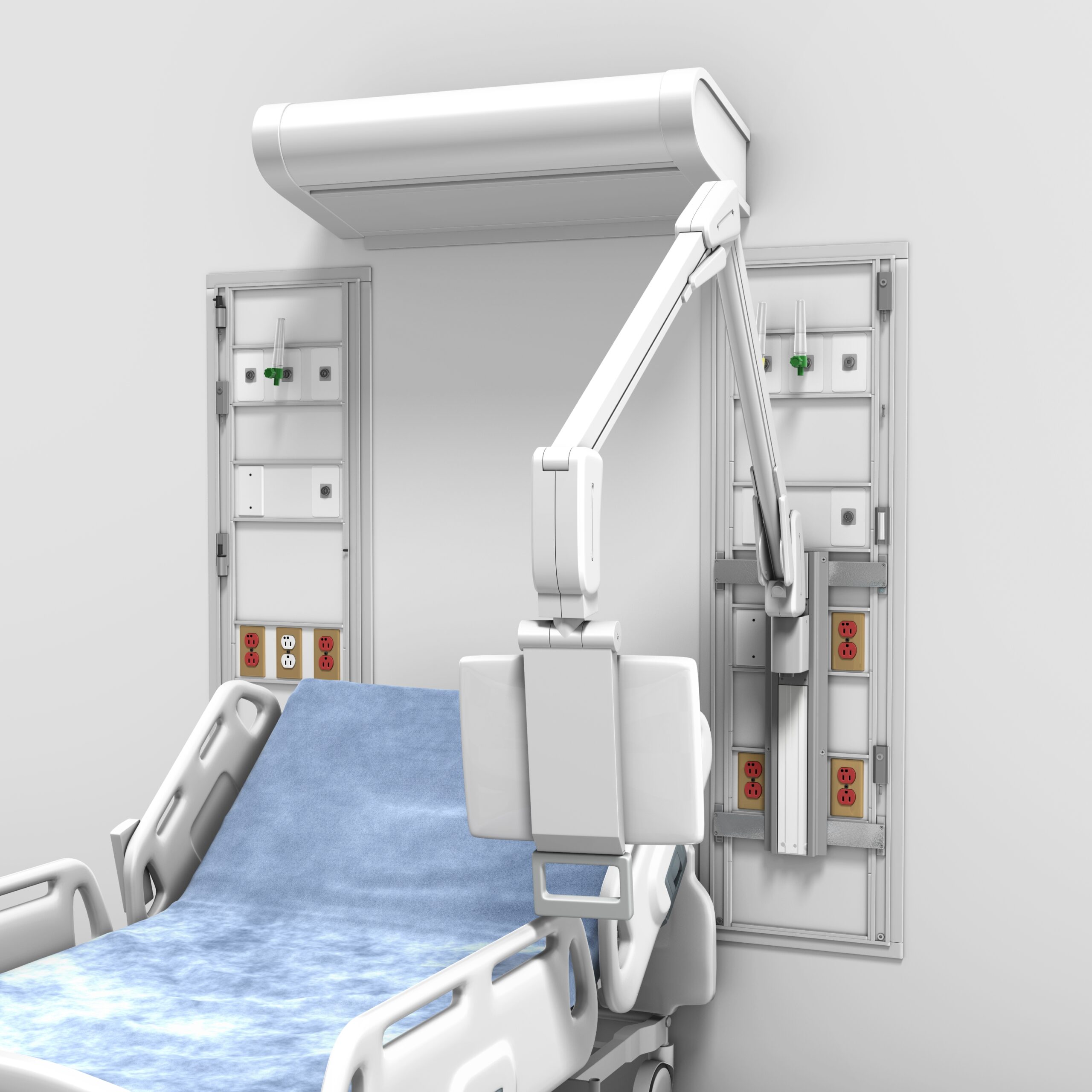

4ft Tablet Arm Bed Front extended L

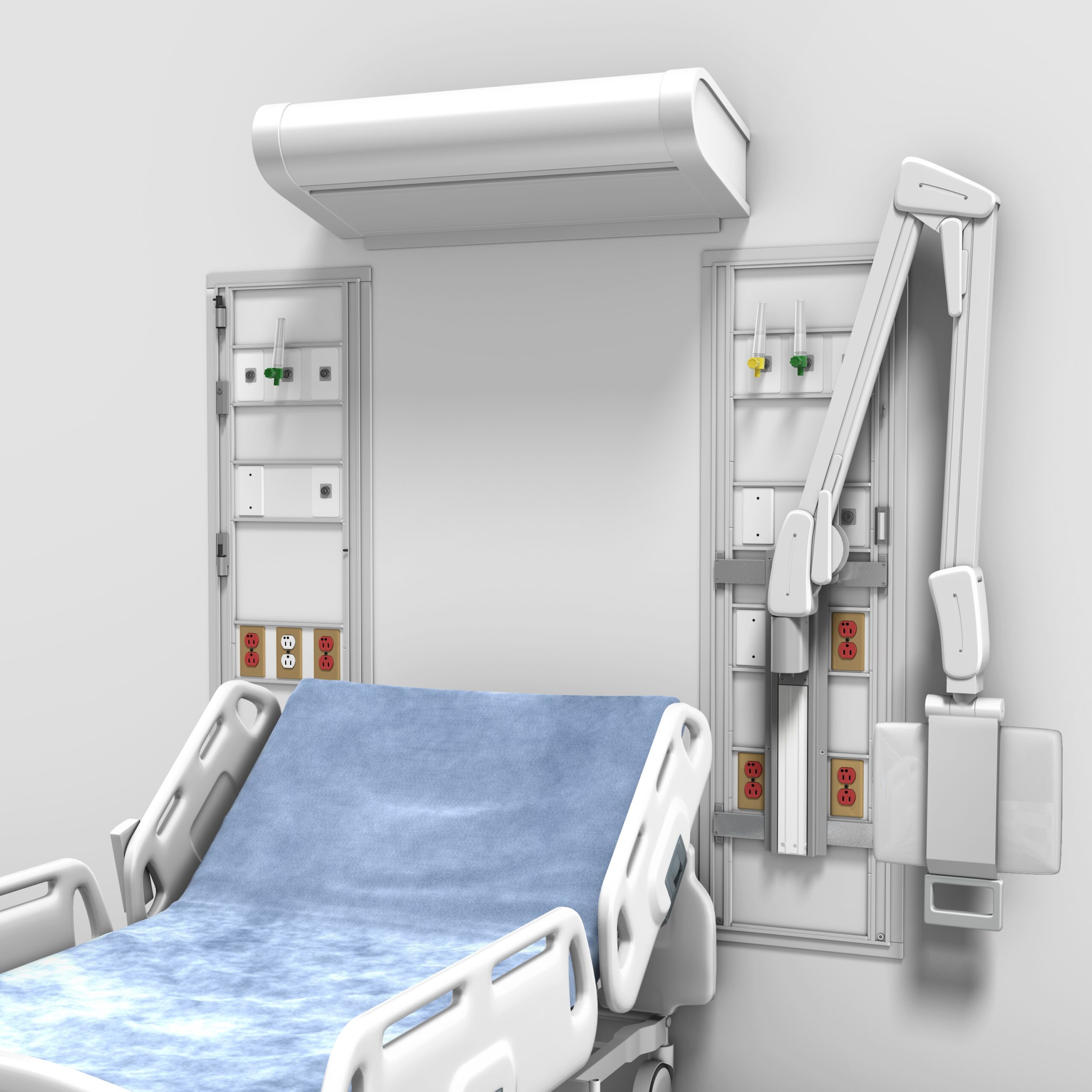

4ft Tablet Arm Bed Front folded L
