GE Healthcare 250 Series Fetal Monitor Cart with Dual VHM-25 Workstation

Create Datasheet

Select options on the right and create a customized datasheet.

Request More Info

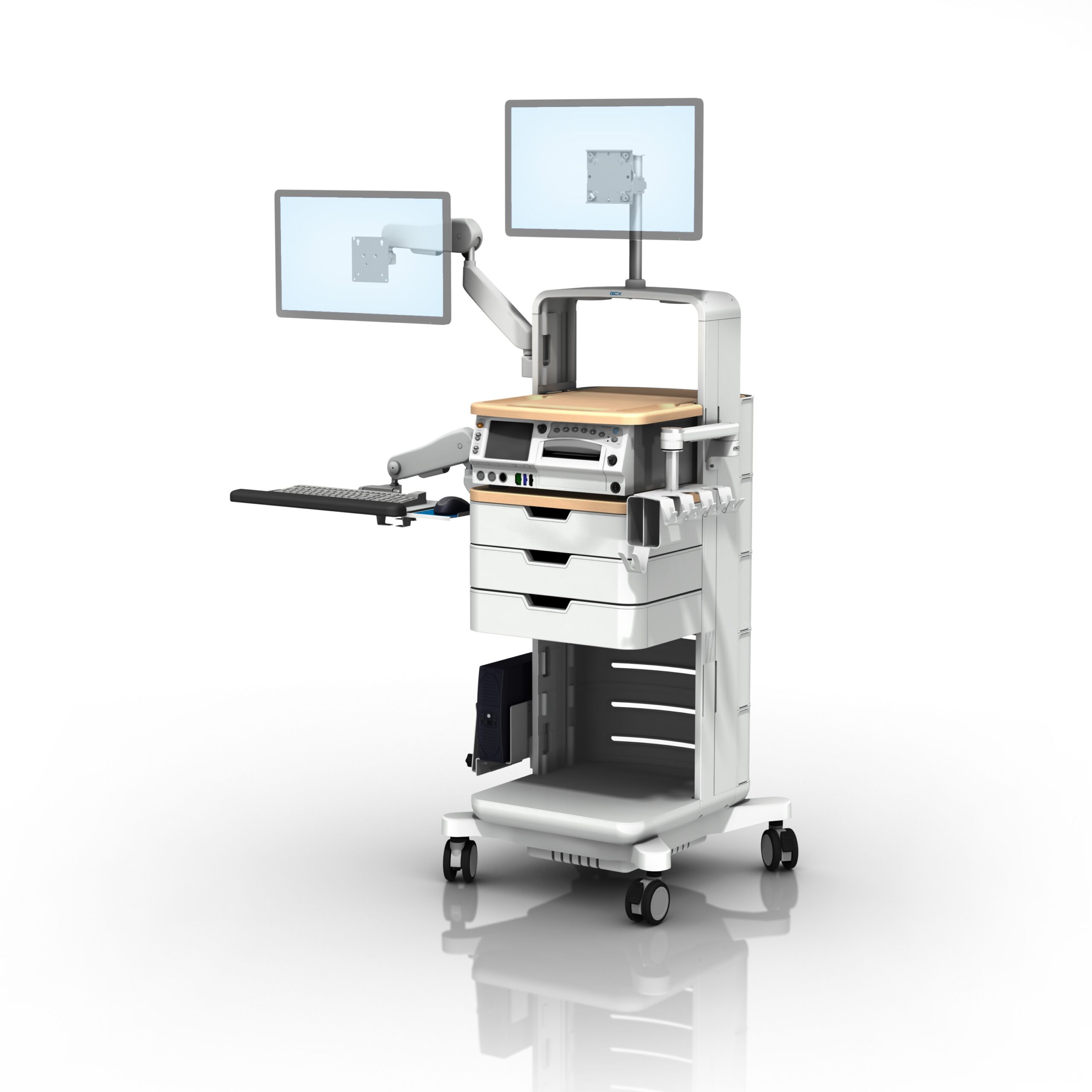

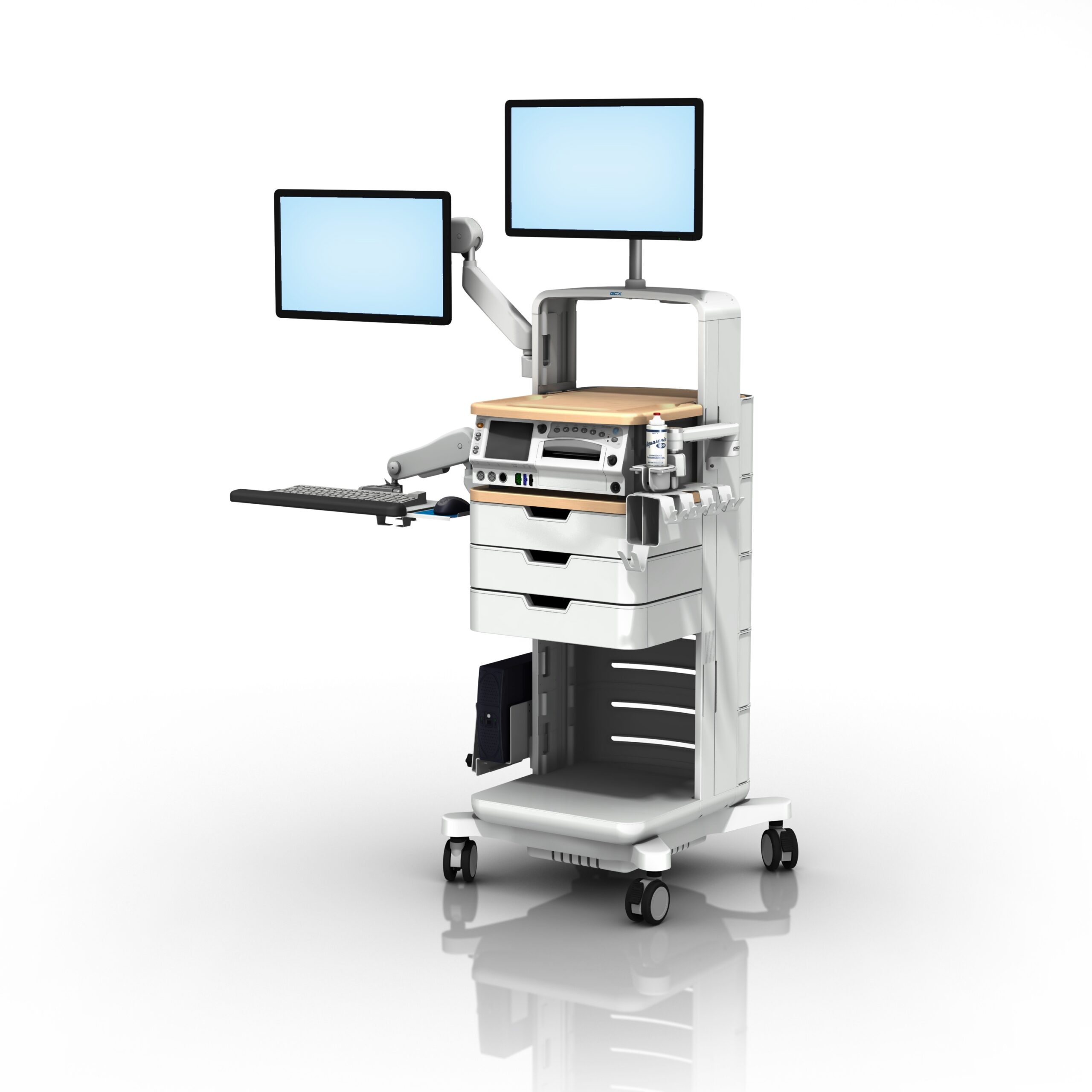

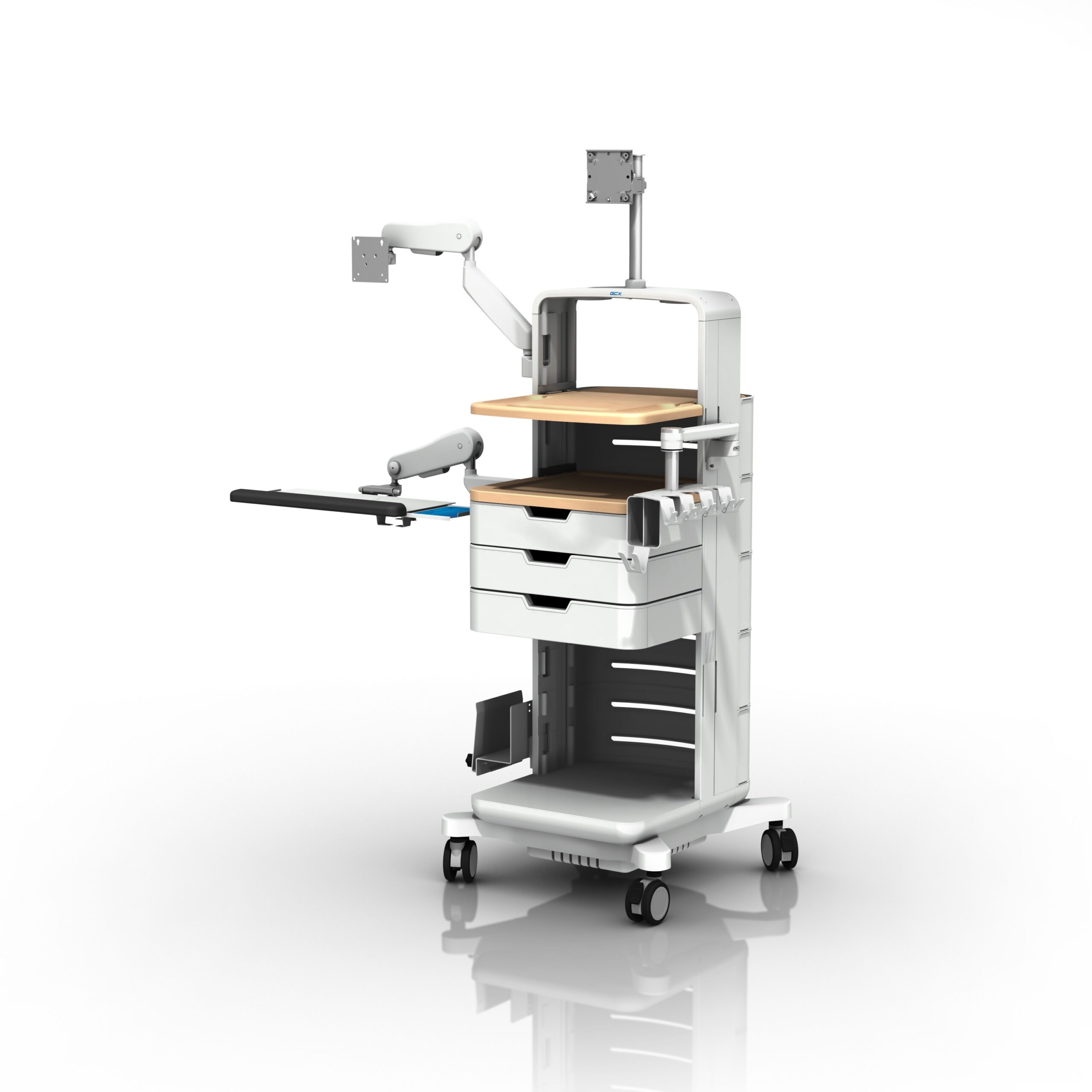

GE Healthcare 250 MC Series Fetal Monitor Cart with Dual VHM-25 Workstation

Note: This solution may require longer cable lengths between devices and accessories. Please consider before installation.

Fetal Monitor Cart Kit Options

Note: This solution may require longer cable lengths between devices and accessories. Please consider before installation.

  • Base with 4″ / 101.6 mm Gray & Black, Locking Casters and Base Cover
  • Two (2) uprights with channels
  • One (1) drawer with cutout for paper and flip-up cover with dividers
  • Two (2) standard drawers with flip-up cover with dividers
  • Five (5) Rear Cable Covers
  • Channel Covers (Pack of 8)
  • Top Crown with VHM-25 Interface and Dual Work Surface LED Task Lights – 100-240 Volt Input with NEMA 1-15 2; Power – 3-Watt LED
  • Fetal Monitor Tray and Work Surface – Color selection required
  • 36 lbs / 13.6 kg Counterweight
  • Medical-Grade Power Strip with 6 Hospital-Grade Outlets and 15′ Cord – 110V Only – UL1363A Approved

Fetal Monitor Tray:

  • Overall Dimensions (w/d): 19 x 19.25” / 48.3 x 48.9 cm
  • Recessed Area: 15 x 15”/ 38.1 x 38.1 cm
  • Thermofoil Colors: Cherry Blossom, Light Maple, Valencia Gray
  • HDPE Color: Light Gray

Work Surface with Integrated Handle:

  • Overall Dimensions (w/d): 16.4 x 19.4” / 41.7 x 49.3 cm
  • Worksurface Dimensions: 15 x 15” / 38.1 x 38.1 cm
  • Thermofoil Colors: Cherry Blossom, Light Maple, Valencia Gray
  • HDPE Color: Light Color




Part Number

FC-0004-71

FC-0004-72

FC-0004-74

FC-0004-75

Top Crown Options

Part Number

FC-0002-69

FC-0002-71

FC-0002-81

  • Small profile – space saving design
  • 75/100 mm VESA compatible
  • 7 to 20 lb/3.2 to 9.1 kg Weight limit
  • Tilt/swivel adjustment
  • Portrait/landscape adjustment
  • 12”/30.5 cm height adjustment
  • Smooth continuous surface with minimal seams for easy cleaning

Note: If using monitor handles with a flat panel display that has a 100mm hole pattern, FLP-0002-17 is required.


Part Number

WS-0008-04

WS-0008-02


Part Number

WS-0008-07


Part Number

WM-0023-56

Recommended Accessories
CPU Mounts for GCX Channels

Part Number

WM-0007-40

WM-0007-41

WM-0007-42

Required for GE Mini Telemetry Support Arm Mounting

Part Number

WMM-0002-02

Required for GE Mini Telemetry Support Arm Mounting

Part Number

GEM-0022-16


Part Number

WM-0009-27


Part Number

WM-0001-18

WM-0001-01

WM-0001-19

RS-0001-28


Part Number

PRB-0001-88


Part Number

WMM-0005-01


Part Number

WS-0003-25

GCX manufactures mounting hardware for a variety of patient monitoring equipment and related devices. The configurations shown are provided for reference only and are intended to show the components available for building a complete workstation. Due to the significant variations in fetal monitoring carts, GCX makes no claims regarding the tip stability or overall safety of the final configuration. It is the responsibility of the healthcare institution to ensure that the configuration—the fetal cart and all components set on, or mounted to, it—is safe.
