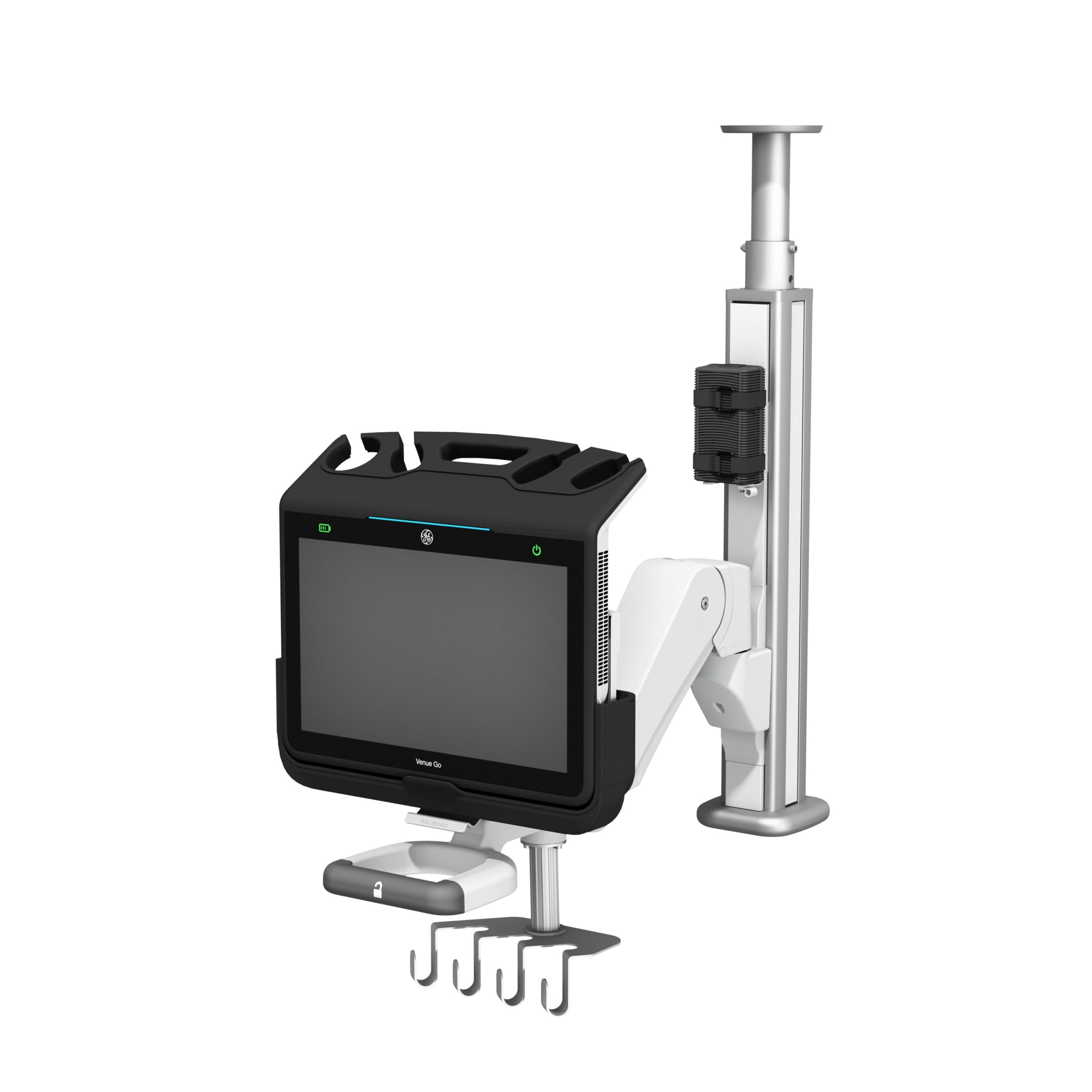

GE Healthcare Venue Go™ PoC Ultrasound on Ceiling Mount

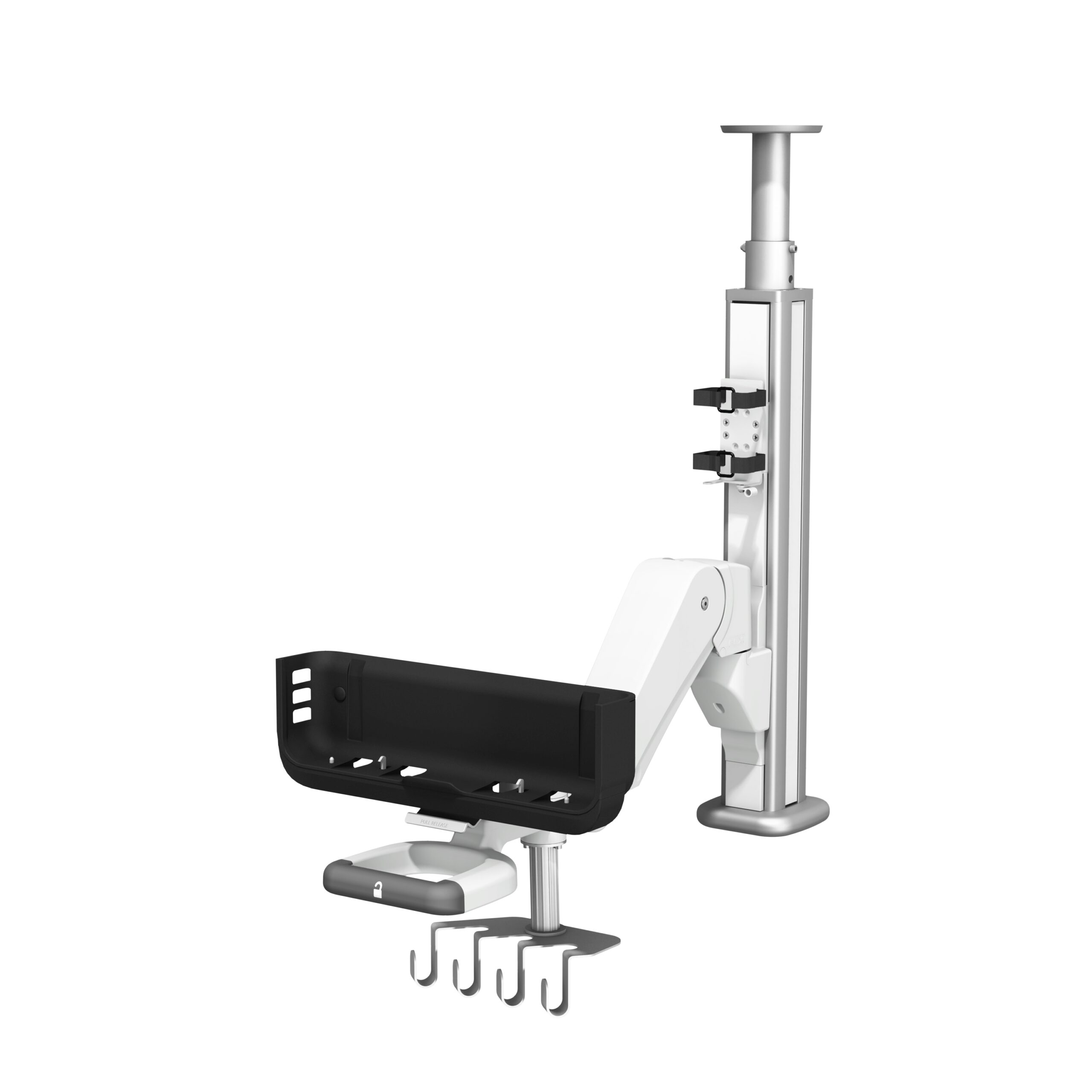

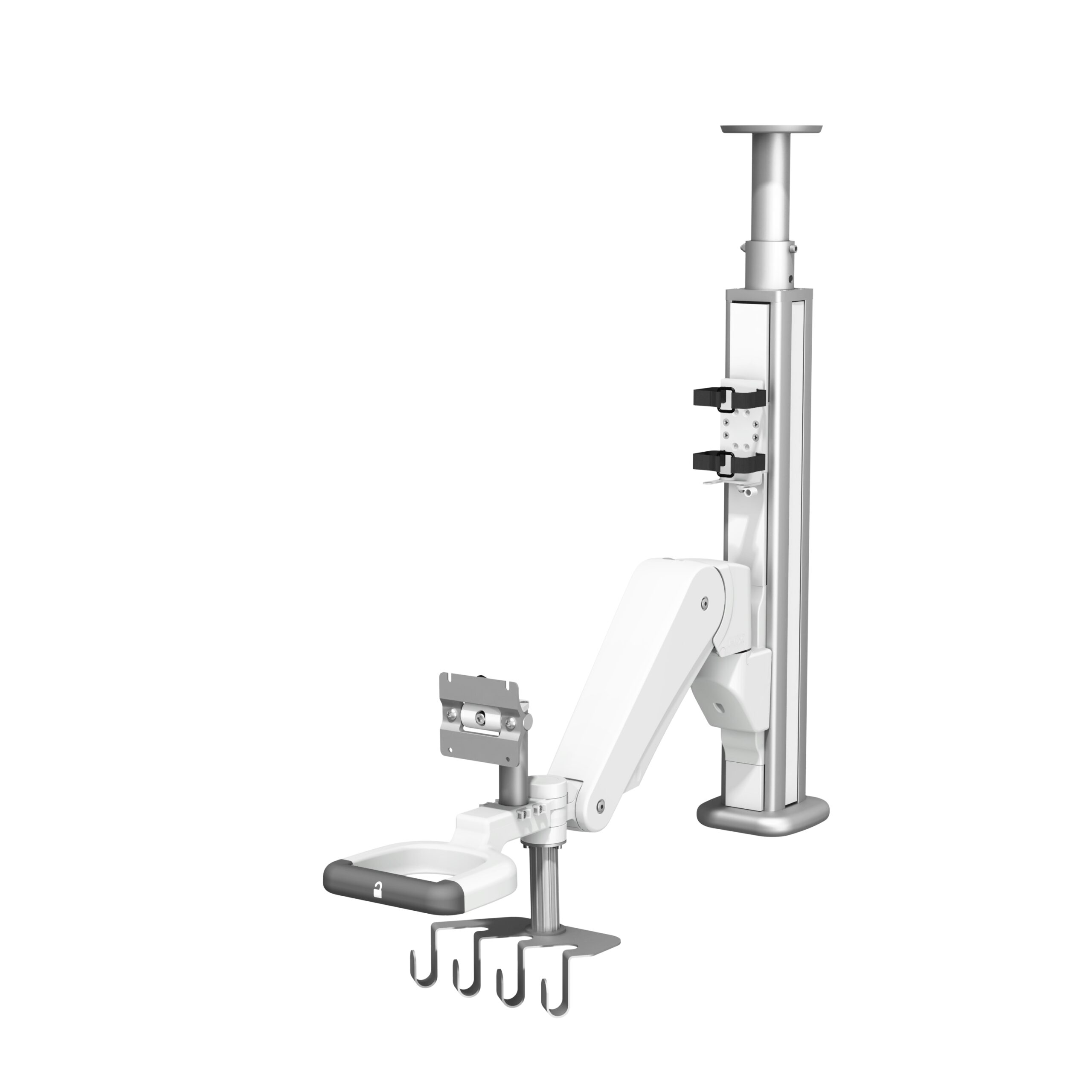

Dual Channel Ceiling Monitor Mount

  • Dual channel columns allow standard GCX wall mounting solutions to be used for ceiling mount applications
  • Features two channel profiles to mount arms and accessories plus two side raceways with covers for cable management
  • Port hole at the top allows cables to be rundown the anchorage pipe and inside the column
  • Pass-through access port in the channel profile area allows cable access from inside the column and to both sides
  • Mounts to 1.5″/3.8 cm NPT pipe (not included)
  • Channel profiles can easily be positioned for left/right or front/back orientation to accommodate different arm combinations and application requirements
  • Not for use with any GCX VHM P/PL Variable Height Arm with an Extension
  • 100 lbs./45.4 kg maximum load at channel profile (flush to column)
  • 50 lbs/22.7 kg maximum load 24″/61 cm from the channel profile*
  • 360 degree swivel adjustment for optimal positioning

NOTE: Assumes adequate anchorage of column. Adequate anchorage is the responsibility of the purchaser.


Part Number

CM-0010-01

CM-0010-02

CM-0010-03

  • Load Range: 11 to 30 lb / 5.0 to 13.6 kg
  • Maximum device weight on VESA Mounting Plate: 30 lb / 13.6 kg
  • 75/100 mm VESA compatible
  • Slide-Below-Arm Configuration


Part Number

WS-0012-84

WS-0012-86

Recommended Accessories

Part Number

UT-0001-13


Part Number

WMM-0006-14

Power Supply Mount

Part Number

WM-0024-03
