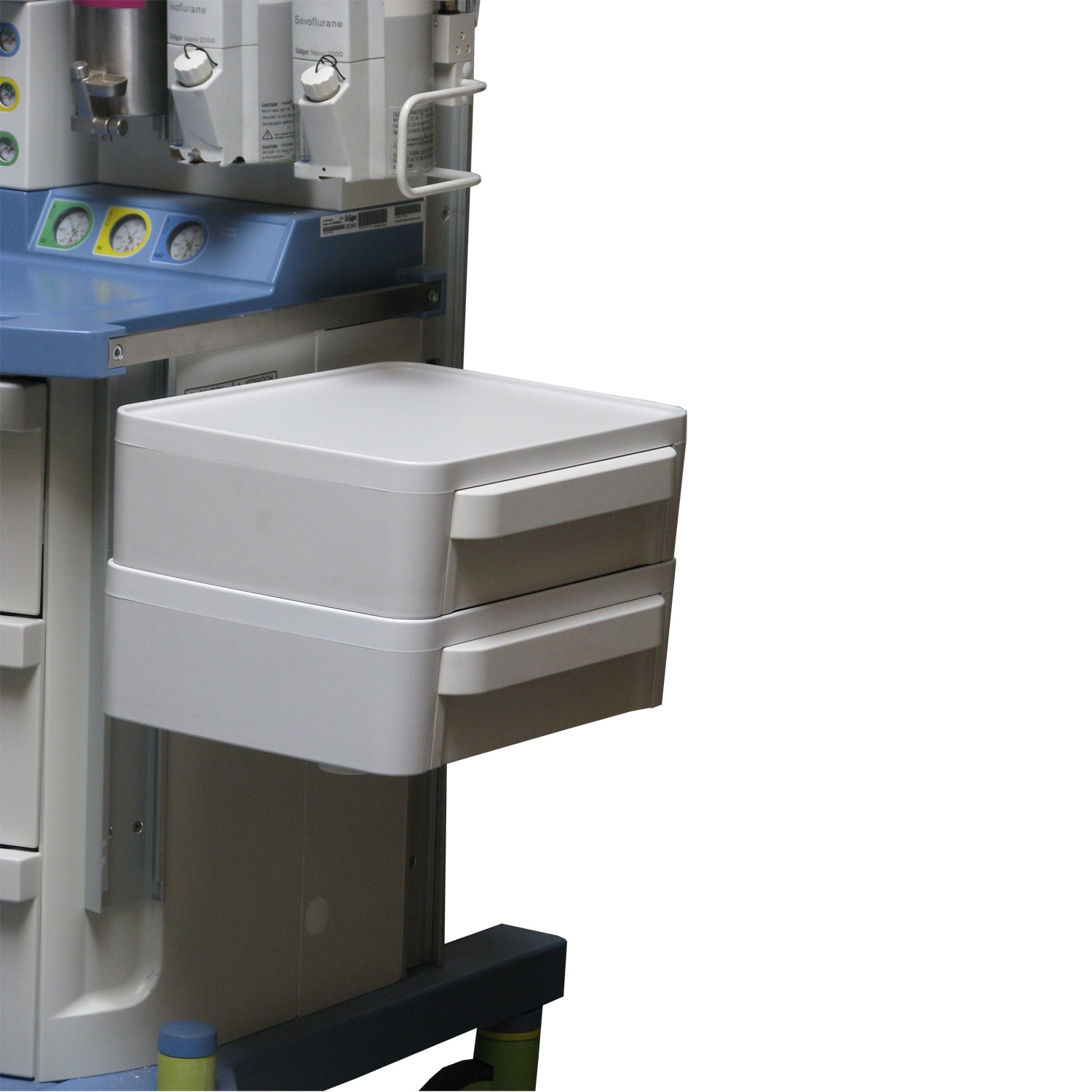

Dual Stor-Locx on Dräger Fabius GS

Stor-Locx Modular Drawer

  • Options: key lock, digital lock or no lock entry
  • (3) Three bay lockable, removable cassette with lid
  • Dimensions (WxHxD): 17″ / 43 cm x 5″ / 12.7 cm x 13.9″ / 35.3 cm
  • Removable cassette dimensions (WxHxD): 12.5” / 31.8 cm x 3.5” / 8.9 cm x 9.25” /23.5 cm
  • Individual bay dimensions (WxHxD): 4.1” / 10.4 cm x 3.5” / 8.9 cm x 9.25” / 23.5 cm
  • Removable cassette maximum load limit: 7.5 lb / 3.4 kg
  • Stor-Locx total maximum load limit: 20 lb / 9.1 kg
  • Handle placement for easy removal of cassette
  • Sleek design offers easy cleaning
  • Integrated, seamless work surface
  • Channel mount slide
  • Product weight: 10 lb / 4.5 kg


Part Number

RST-0007-86

RST-0007-66


Part Number

RST-0003-46

Recommended Accessories

Part Number

WMM-0005-02

GCX manufactures mounting hardware for a variety of patient monitoring equipment and related devices. The configurations shown are provided for reference only and are intended to show the components available for building a complete workstation. Due to the significant variations in anesthesia machines and related equipment, GCX makes no claims regarding the tip stability or overall safety of the final configuration. It is the responsibility of the healthcare institution to ensure that the configuration—the anesthesia machine and all components set on, or mounted to, it—is safe.
