VHM-25 for Flat Panel and VHM-25 for Keyboard on GE Healthcare Aestiva
OH-0010-83
VHM-25 Variable Height Arm
- Small profile – space saving design
- 75/100 mm VESA compatible
- 7 to 20 lb/3.2 to 9.1 kg Weight limit
- Tilt/swivel adjustment
- Portrait/landscape adjustment
- 12”/30.5 cm height adjustment
- Smooth continuous surface with minimal seams for easy cleaning
Note: If using monitor handles with a flat panel display that has a 100mm hole pattern, FLP-0002-17 is required.
WS-0008-01
WS-0008-02
WS-0008-04
WS-0008-32
OH-0010-83
OH-0010-84
Arm Options
- Small profile – space saving design
- 3 to 10 lbs/ 1.4 to 4.5 kg Weight range
- Optimized from the factory for keyboards weighing up to 5 lbs/2.3 kg
- Folding keyboard bracket with adjustable folding tension
- 5.5”/13.97 cm From wall in the fold up position
- Adjustable keyboard angle: +/- 10 degrees
- 12”/30.5 cm Height adjustment with adjustable tension
- Swivel adjustment
- Smooth continuous surface with minimal seams for easy cleaning
Note: Keyboard tray sold separately
WS-0008-06
WS-0008-07
Keyboard Tray and Plate Options
WM-0023-56
Recommended Accessories
OH-0010-83
OH-0010-84
WM-0007-41
Monitor Handles
FLP-0008-64
CPU Mounts
WM-0007-40
WM-0007-41
WM-0007-42
WM-0007-43
GCX manufactures mounting hardware for a variety of patient monitoring equipment and related devices. The configurations shown are provided for reference only and are intended to show the components available for building a complete workstation. Due to the significant variations in anesthesia machines and related equipment, GCX makes no claims regarding the tip stability or overall safety of the final configuration. It is the responsibility of the healthcare institution to ensure that the configuration—the anesthesia machine and all components set on, or mounted to, it—is safe.
Datasheets
Installation Guides
- Roll Stand CPU Mount
DU-CPU-RS - Handle for Flat Panel Display 12" to 25" Wide
DU-FLP-0008-64 - Ohmeda Dovetail 7” / 17.8 cm Channel Instructions
DU-OH-0010-83 - 20.8" / 52.8 cm Ergo Keyboard Tray with Wrist Rest
DU-WM-0023-56 - VHM-25™ Variable Height Arm Channel Mount Instructions
DU-WS-0008-01 - VHM-25™ Variable Height Arm Keyboard Mount Instructions
DU-WS-0008-07
Create Product Datasheet

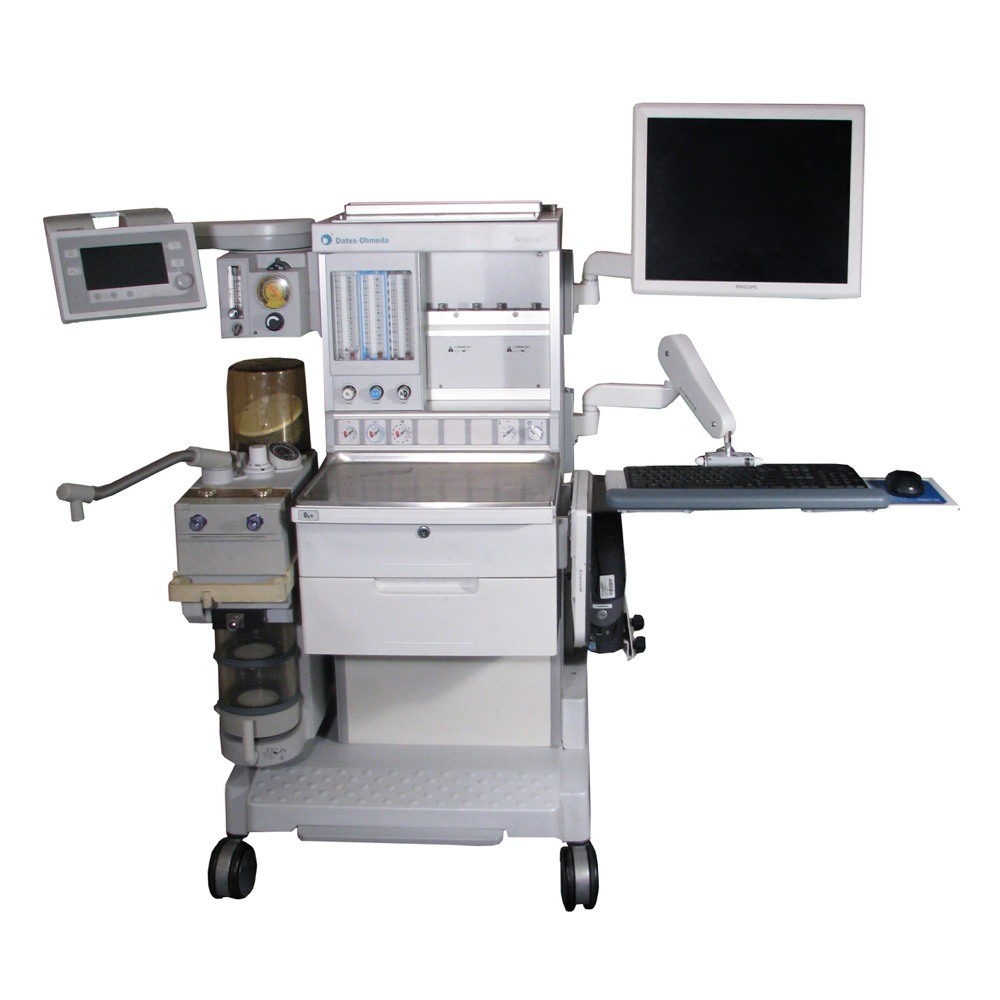

Aestevia VHM Monitor Keyboard Loaded web

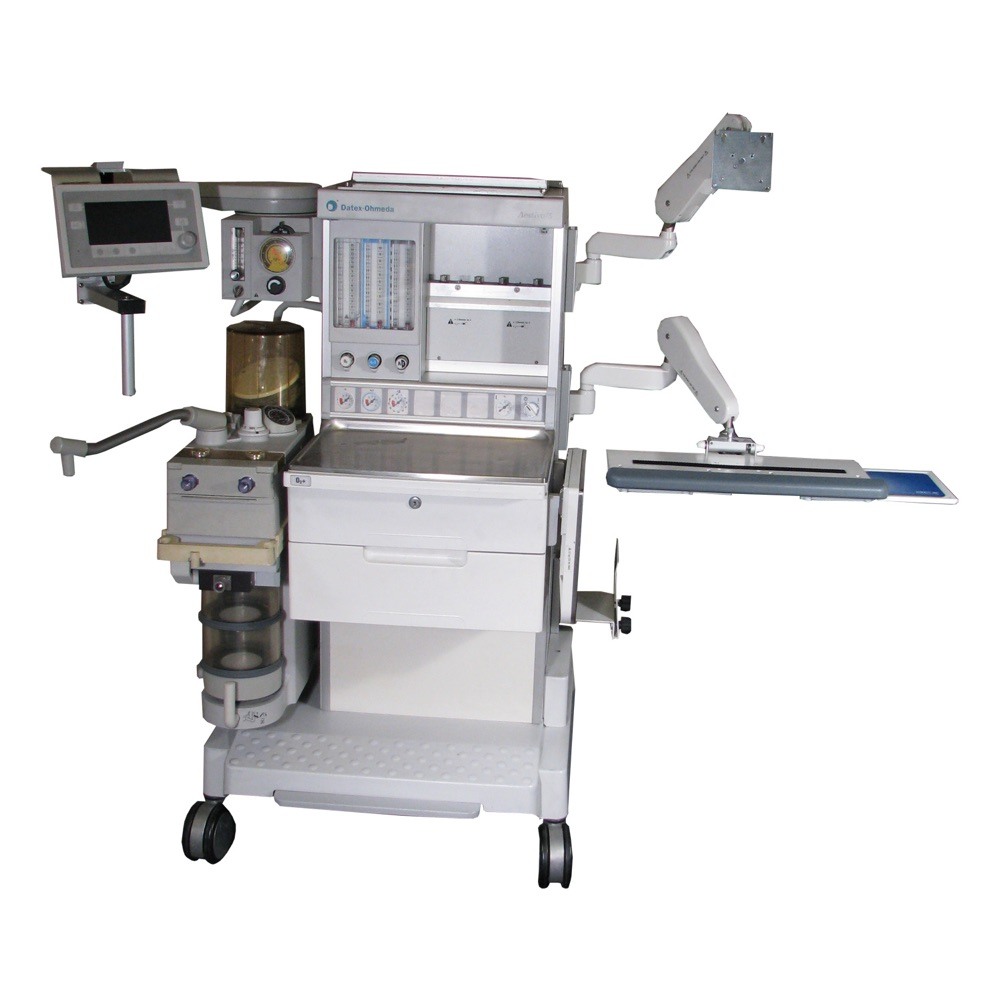

Aestevia VHM Monitor Keyboard Unloaded WEB
