Spacelabs Qube™ Monitor with Docking Station – M Series Arm

Details

Part Number

Spacelabs qube Monitor M Series Arm

12″/30.5 cm M Series pivot arm
VESA 75/100 mm mount
Offers a pivot point at the wall channel for lateral adjustability and swivel adjustment
Features range of motion from flush to full extension, and cable management
Tilt Mechanism Maximum Load: 30 lbs/13.6 kg
Total Arm Maximum Load: 60 lbs/27.2 kg
Product Weight: 2.8 lbs/1.3 kg

SL-0060-34

Details

Part Number

Channel Mount Power Supply Holster

Includes 17″/43.2 cm Velcro Straps to secure power supply
Product weight: .5 lbs/.2 kg

Power Supply Holster Only
Use with WM-0024-05

SL-0060-89

Recommended Accessories

Details

Part Number

19" / 48.3 cm Seismic Channel

Seismic 19″ / 48.3 cm wall channel
Includes mounting hardware and instructions
OSHPD Pre-Approval: WC-0002-03, -05, -07, -09, -11, and -15

Note: Channel covers not included

Product Weight: 2.00 lbs / .91 kg

WC-0002-05

Details

Part Number

25" / 63.5 cm Seismic Channel

Seismic 25″ / 63.5 cm Wall Channel
Includes mounting hardware and instructions
OSHPD Pre-Approval: WC-0002-03, -05, -07, -09, -11, and -15

Note: Channel covers not included

Product Weight: 3.10 lbs / 1.41 kg

WC-0002-07

Details

Part Number

Dual Cable Hooks for Cable Management

Hooks for cable management below an arm
Swivel adjustment allows positioning of the hooks as desired (limited range of motion when used with VHM variable height arm)
Product weight: .2 lb / .1 kg
Maximum Load Per Hook: 3 lbs /1/4 kg
Note: Not for use with VHM-25 Variable Height Arm.

Hooks for cable management below an arm
Swivel adjustment allows positioning of the hooks as desired (limited range of motion when used with VHM variable height arm)
Product weight: .2 lb / .1 kg
Maximum Load per hook: 2.5 lbs / 1.13 kg each

Note: Not for use with VHM-25 Variable Height Arm.

WMM-0006-04

Reset Choices Request More Info

Installation Guides

Power Supply Channel Mount Instructions
DU-WM-0024-03

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Approach

Our Expertise

Modalities

Care Area Solutions

IT and EMR Solutions

Medical Device Solutions

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Accessories

Approach

Modalities

Our Expertise

Technical Support

On-Site Services

Resource Library

Who We Are

News & Noteworthy

Create Datasheet

Spacelabs Qube™ Monitor with Docking Station – M Series Arm

Recommended Accessories

Installation Guides

Create Datasheet

Spacelabs Qube™ Monitor with Docking Station – M Series Arm

Recommended Accessories

Installation Guides

Create Product Datasheet

Email This Product Configuration

Product Information Request

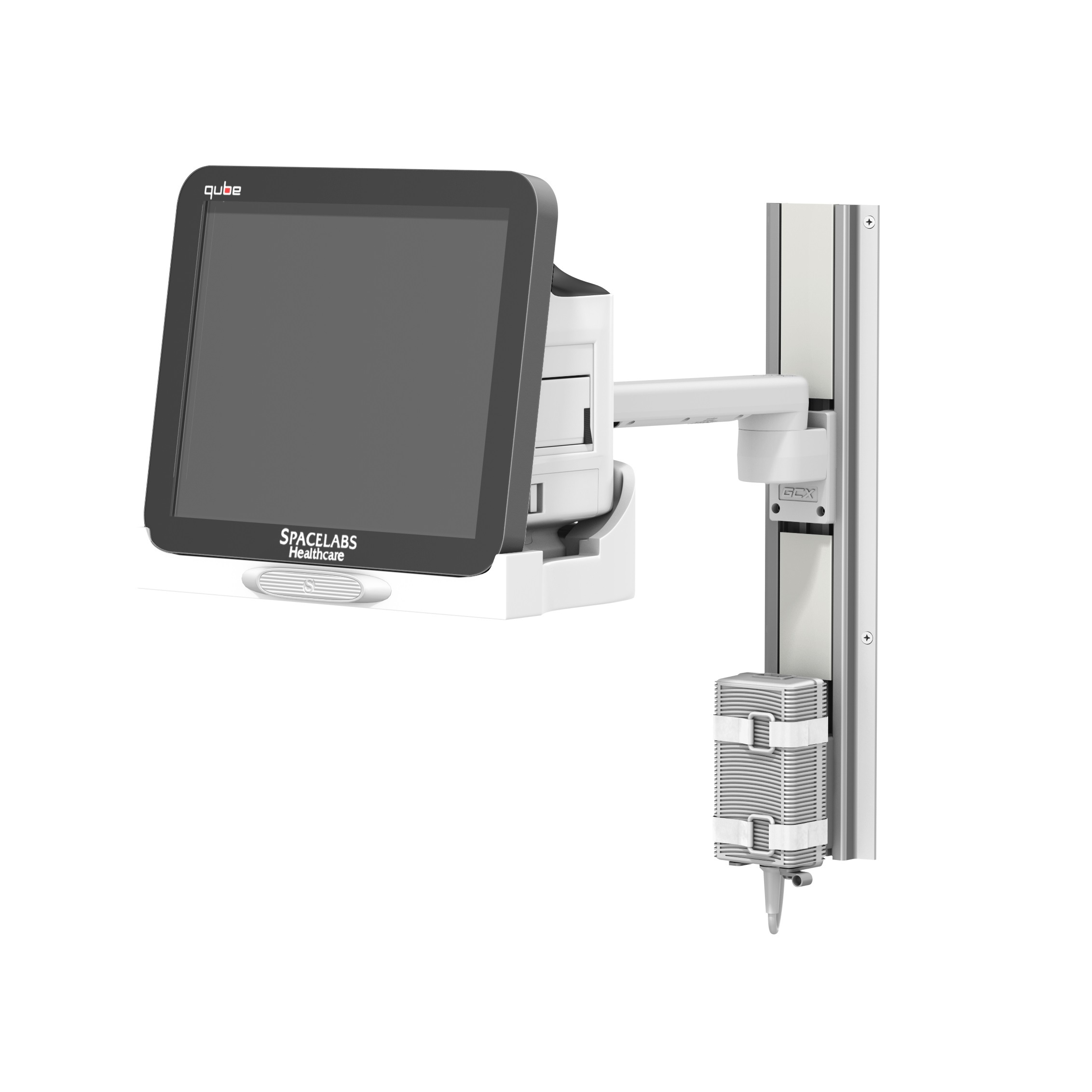

Qube With Dock 12in M Series Loaded LG

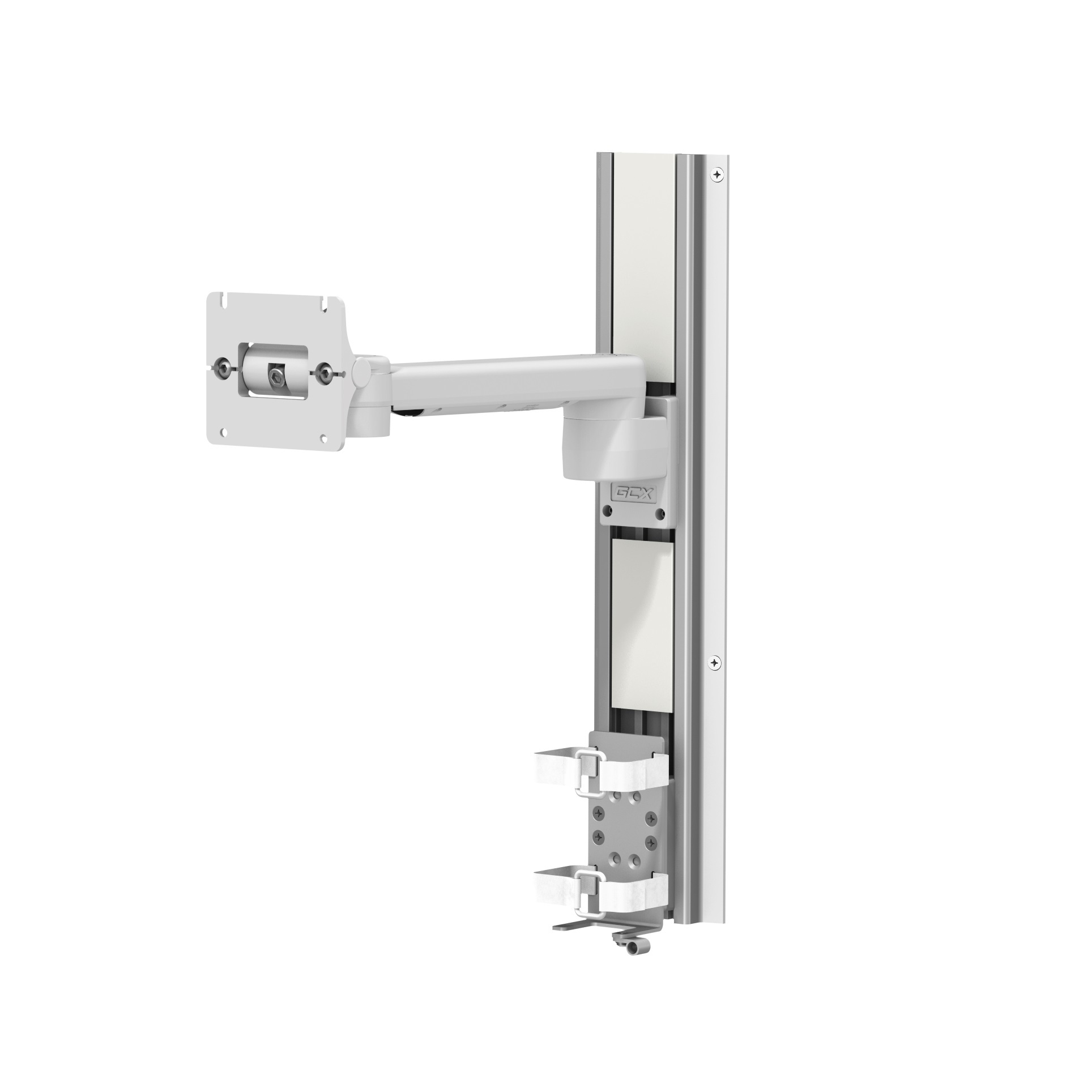

Qube 12in M Series Unloaded LG
