Part Number: WA-40-15

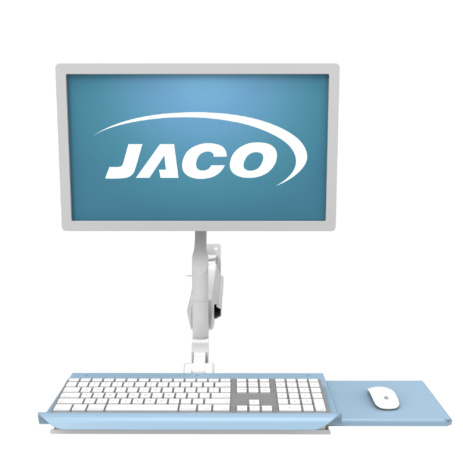

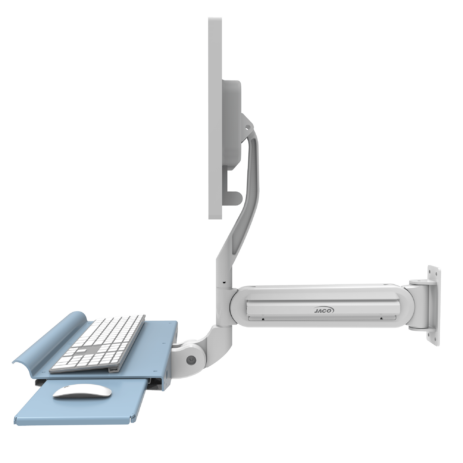

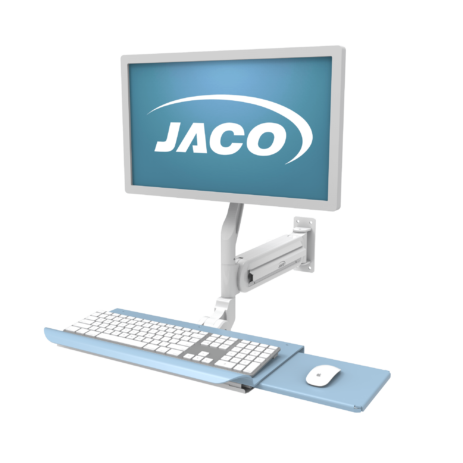

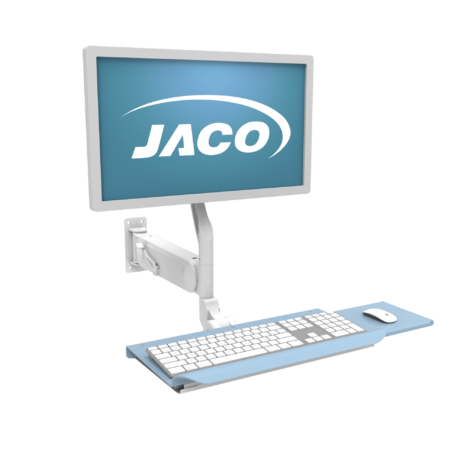

Jaco WA-40 Wall Arm, 11-15 lb Weight Capacity

Print or Save PDF View Product Gallery

Status: End of Life

Part number

WA-40-15

Quote description

WALL ARM, WA-40, KEYBOARD TRAY, 11-15 LB

Product Group

Wall Arms

Minimum order quantity

1

Dimensions & Weight

Length: 35"
Width: 20"
Height: 20"
Weight: 20LB

Warranty

Limited Lifetime Warranty

Product Description

JACO Wall Arms provide clinicians with a secure, stable and effective way to access vital information and maximize care. Our Wall Arms are manufactured out of lightweight, aircraft-grade aluminum to accommodate a variety of displays.

Key Features
• Extends 30" from wall (49" with optional extension); folds to 7" from wall
• 80% internal cabling
• Adjustments include vertical travel, display end swivel, wall mount swivel, independent monitor/keyboard swivel, and display tilt
• Lifetime Warranty
• 11-15 lb Weight Capacity
Extended Specifications
• Vertical Travel: 16" Counterbalanced
• Display Swivel: 340° Mount: 180°
• Display Tilt: Forward: 15° Back: 45°
• Worksurface: None
• Keyboard Tray: Exposed
• Fold From Wall: 7"
• Reach From Wall with Optional Extension: 51"
• Weight: 30 lbs
• Weight Capacity: Wall Arm is calibrated for a 11 to 15 lbs weight capacity, cannot be adjusted once delivered.
• Cable Management: Internal/External
