Part Number: EVO-10-HS-L408

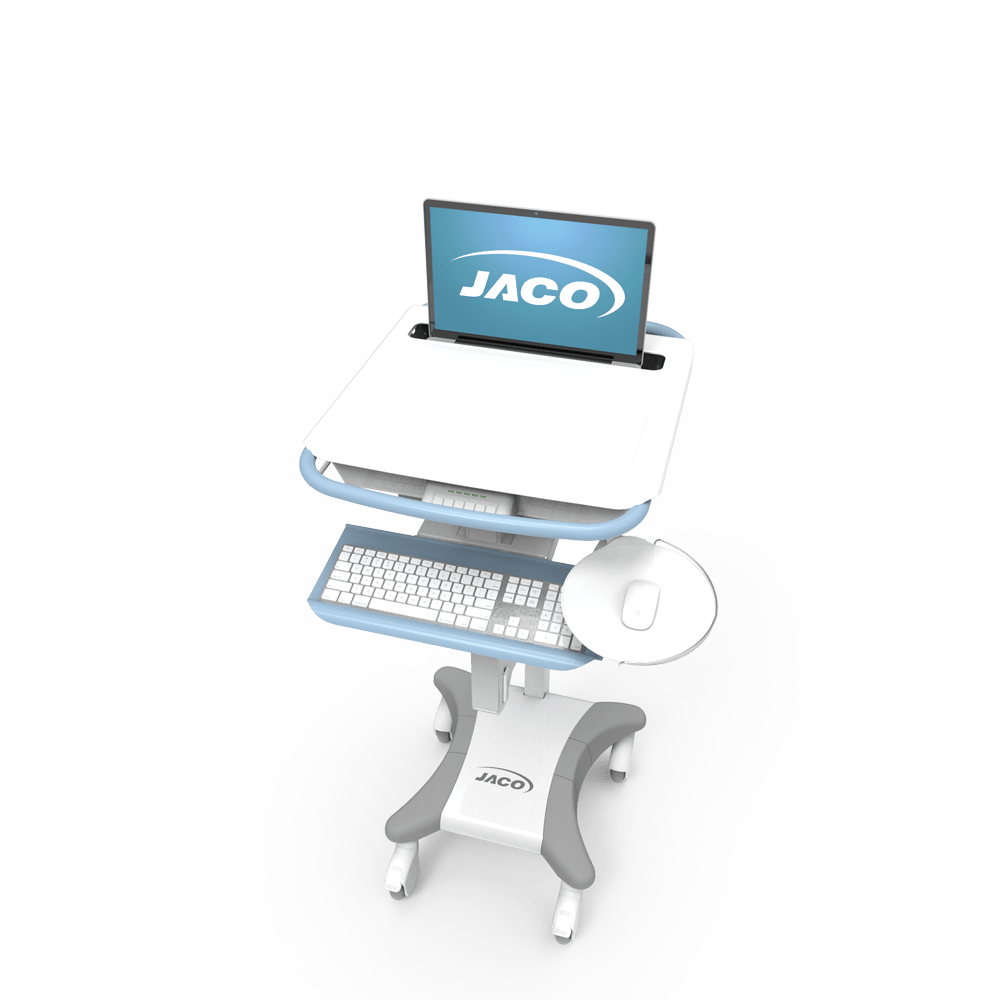

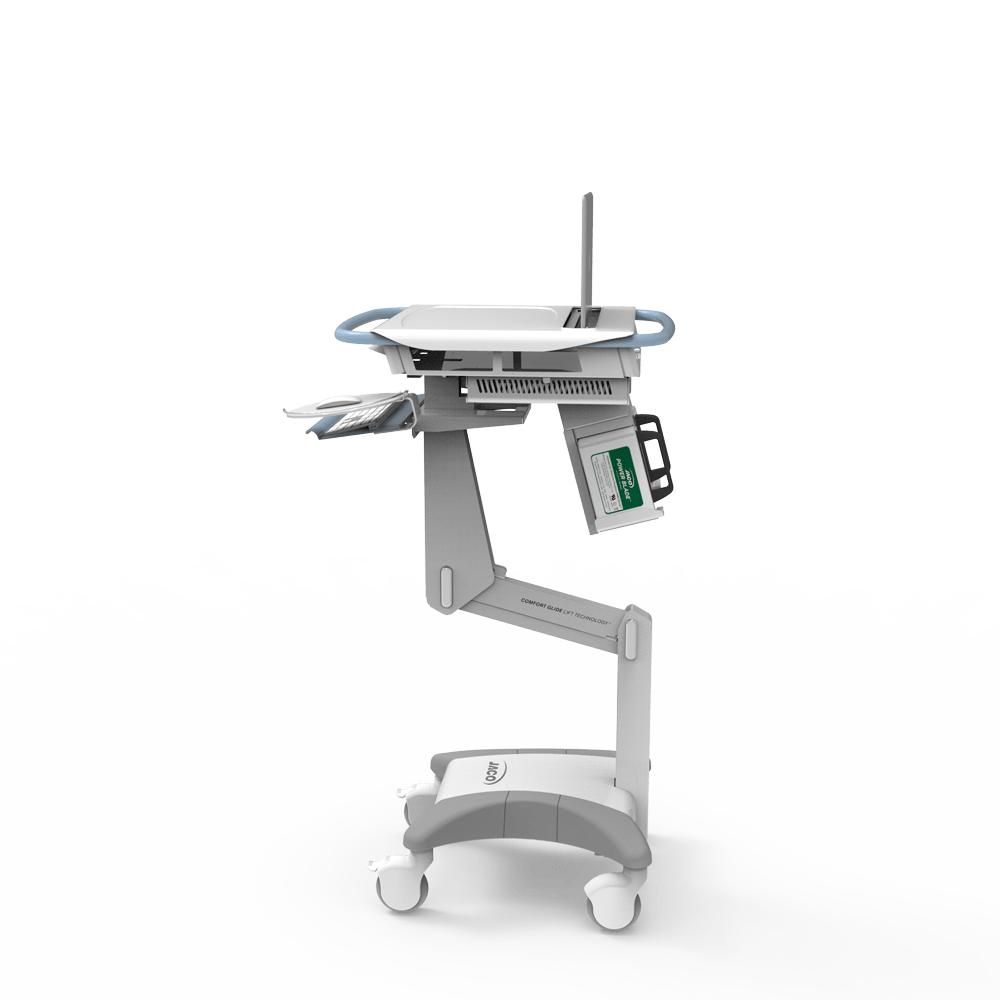

Jaco EVO-10 Cart for Laptops with Onboard Hot-Swap LiFe Power System and 2 POWERBLADE Batteries

Print or Save PDF View Product Gallery

Status: End of Life

Part number

EVO-10-HS-L408

Quote description

CART, JACO EVO, LAPTOP, HOTSWAP, LiFe L408 POWER SYSTEM

Product Group

Carts

Minimum order quantity

1

Dimensions & Weight

Length: 28"
Width: 20"
Height: 33"
Weight: 84LB

Warranty

10 Yr Lift; 7 Yr Struct; 3 Yr Elect; 3 Yr OEM

Product Description

Jaco evolves the powered cart – again. Jaco One EVO takes Jaco One’s breakthrough ease of use two giant steps forward. We’ve refined Comfort Glide for 1, one-handed height adjustment. And we’ve trimmed off excess weight and mass – without sacrificing strength and durability – to create the lightest, easiest-to-roll, most reliable powered cart we’ve ever built. EVO-10 Cart for Laptops with onboard Hot-Swap LiFe Power System and 2 Power Blades

Key Features
• Effortless height adjustment – the worksurface glides up and down with virtually no resistance
• Easy-to-access electronics for faster service, minimal downtime
• Designed and refined for fewer failure points and reduced wear and tear
• A smart alternative to powered lift carts – lighter, faster, quieter, and far less likely to need service
Product Details
• Ships assembled
• Lightweight aluminum and welded metal tube construction
• Infection Control: Antimicrobial embedded powder coat finish
• Manufactured in the USA
Extended Specifications
• Mostly aluminum and steel construction for years of trouble free use and dependability
• Retracting Keyboard Tray with right side elevated Mouse Surface for best ergonomic positioning
• Comfort Glide Post design for effortless height adjustment when needed
• PC security contained within the Cart top assembly
• Wheel base 16" x 13" x 16"
• Four 4" Single Wheel Casters with 2 front locking
• Weight without laptop 84 lbs.
• Work surface height range from 32.5" to 46.5"
• Keyboard height adjustment from 25.5" to 41.5"

Power System & Batteries (Included):
• AC output voltage: 120V AC, 120W, UL60601 Certification
• Wave form output: Pure sine AC
• Battery technology: Lithium iron phosphate (LiFePO4 )
• Capacity: 204 Wh per battery, 408 Wh maximum
• Battery lifespan: 4000+ recharge cycles per battery
• Recharge time: 2 hours to 100%
• Weight: 4.9lbs per battery

Charging Station (Not Included):
• Input AC: 100 -240 VAC
• Charge voltage: 14.4 VDC, 8 A max
• Wall mount dimensions: 17.25” w x 8.0” h x 4” d
• Free standing dimensions: 17.25” w x 8.7” h x 6.8” d
What's Included
• EVO-10 Mobile Cart • Hot-Swap LiFePO4 Battery Blade Power System • Includes two LiFePO4 Power Blades • Does not include Laptop / Keyboard / Mouse
