Part Number: 73-0841

Jaco Drawer System – Triple 3 Inch Drawer Cabinet, Front Open, Touch Pad-Lock, Storage Bins Required (Sold Separately)

Print or Save PDF View Product Gallery

Status: Available

Part number

73-0841

Quote description

CABINET, TRIPLE, 3 IN, FRONT PULL, E/L EVO

Product Group

Drawers

Minimum order quantity

1

Dimensions & Weight

Length: 13.5"
Width: 8.15"
Height: 12.85"
Weight: 12LB

Warranty

Accessory Warranty: 7 Year Accessory, 3 Year Electrical, 3 Year OEM

Product Description

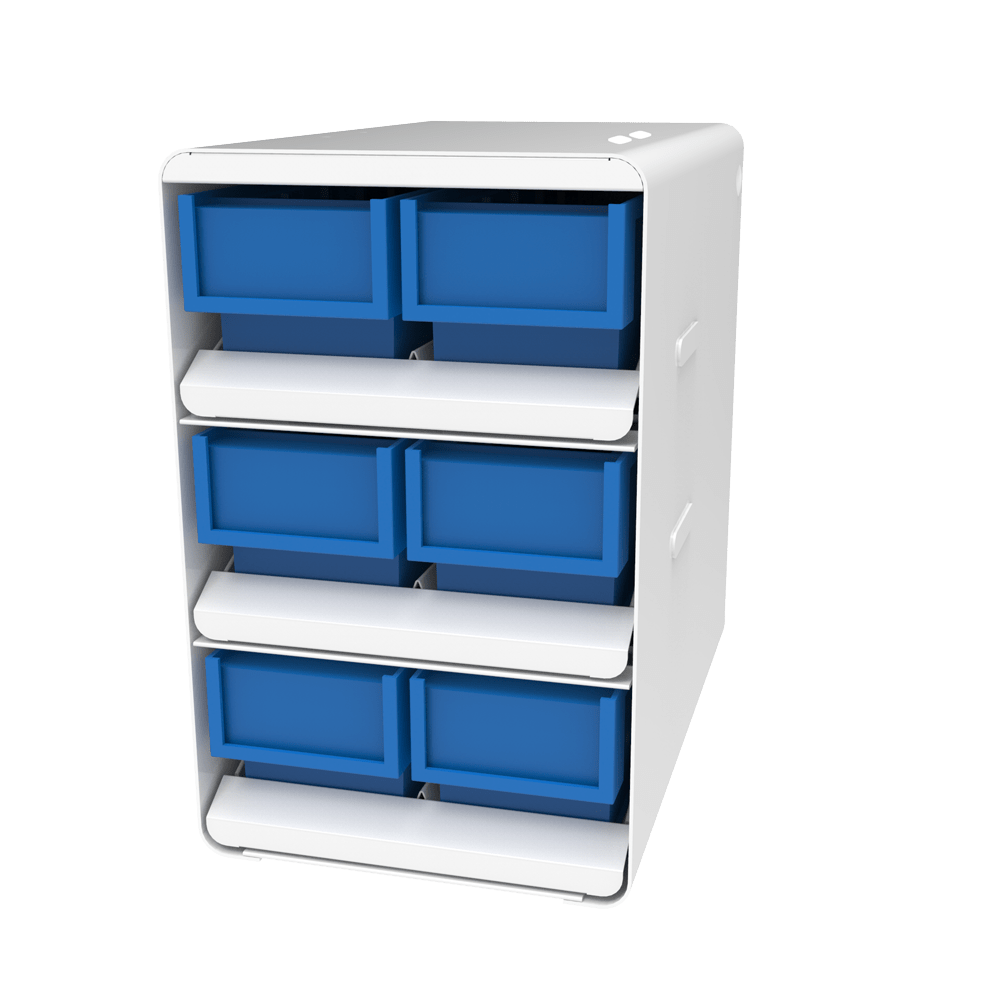

EVO Cart Triple e-Lock Drawer System, allows for up to 6 Storage Bins, front access, mounts on Left or Right side of Front Post. Storage Bins are required, must order separately and available as 51-4753, Single Wide Bin (1 per drawer) or 51-4802, Dual Narrow Bins (2 per drawer).

Key Features
• Front open Drawers

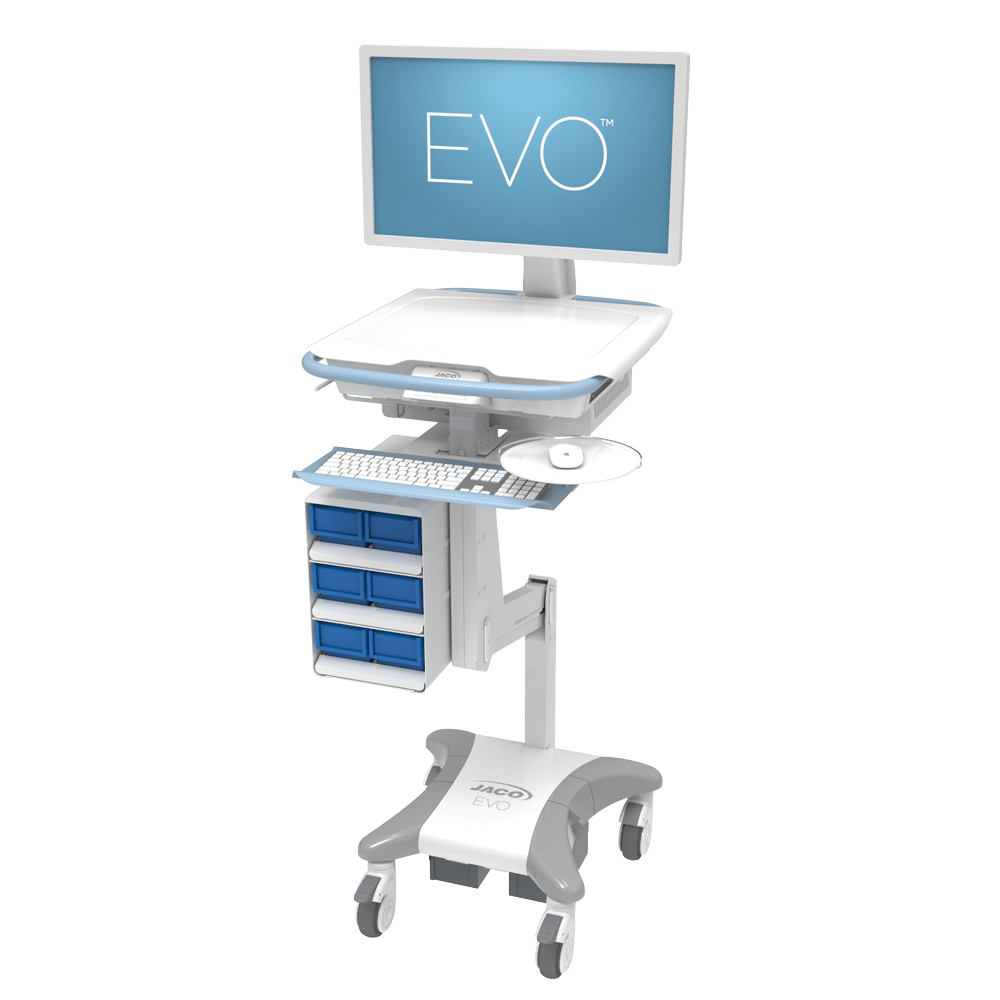

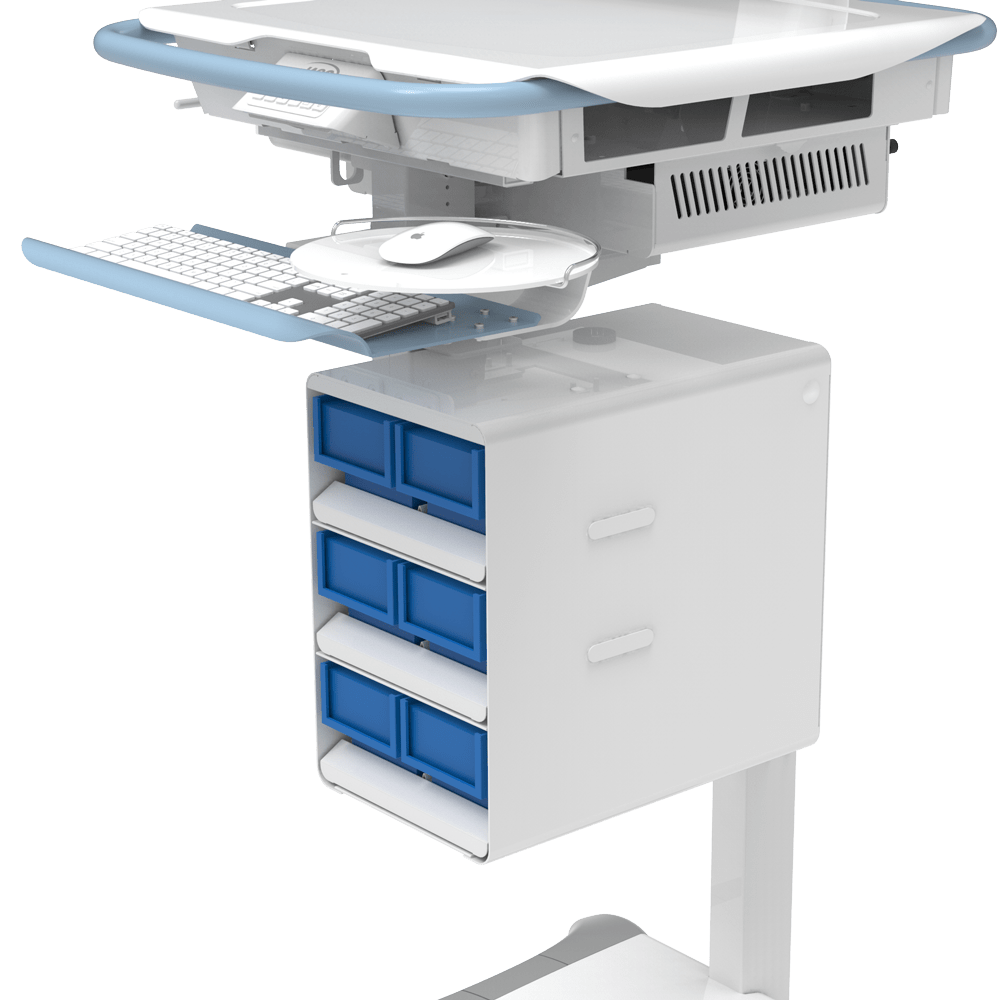

• Mount Left or Right side of EVO Front Post (Left default)
• Each of the 3 drawers will accept either a single wide storage bin or dual narrow storage bins (ordered separately)
• Each drawer rated for max of 2 lbs.
Extended Specifications
• Material: Aluminum
• Finish: Antimicrobial Powder Coat
• Max Weight Supported: 2 lbs. per drawer
• Removable storage bins are required, sold separately and available as 51-4753, Single Wide Bin (1 per drawer) or 51-4802, Dual Narrow Bins (2 per drawer).
What's Included
Includes Cabinet, drawers, cable, lock override slide bracket, mounting bracket and hardware to mount to the JACO EVO Mobile Cart. Does not include Mobile Cart Status Nose Cone Assembly or storage bin (Bins are required but must be ordered separately).
Part Compatibility
NP carts must have ES package for compatibility.
Compatibility Notes
NP carts must have ES package for compatibility.
