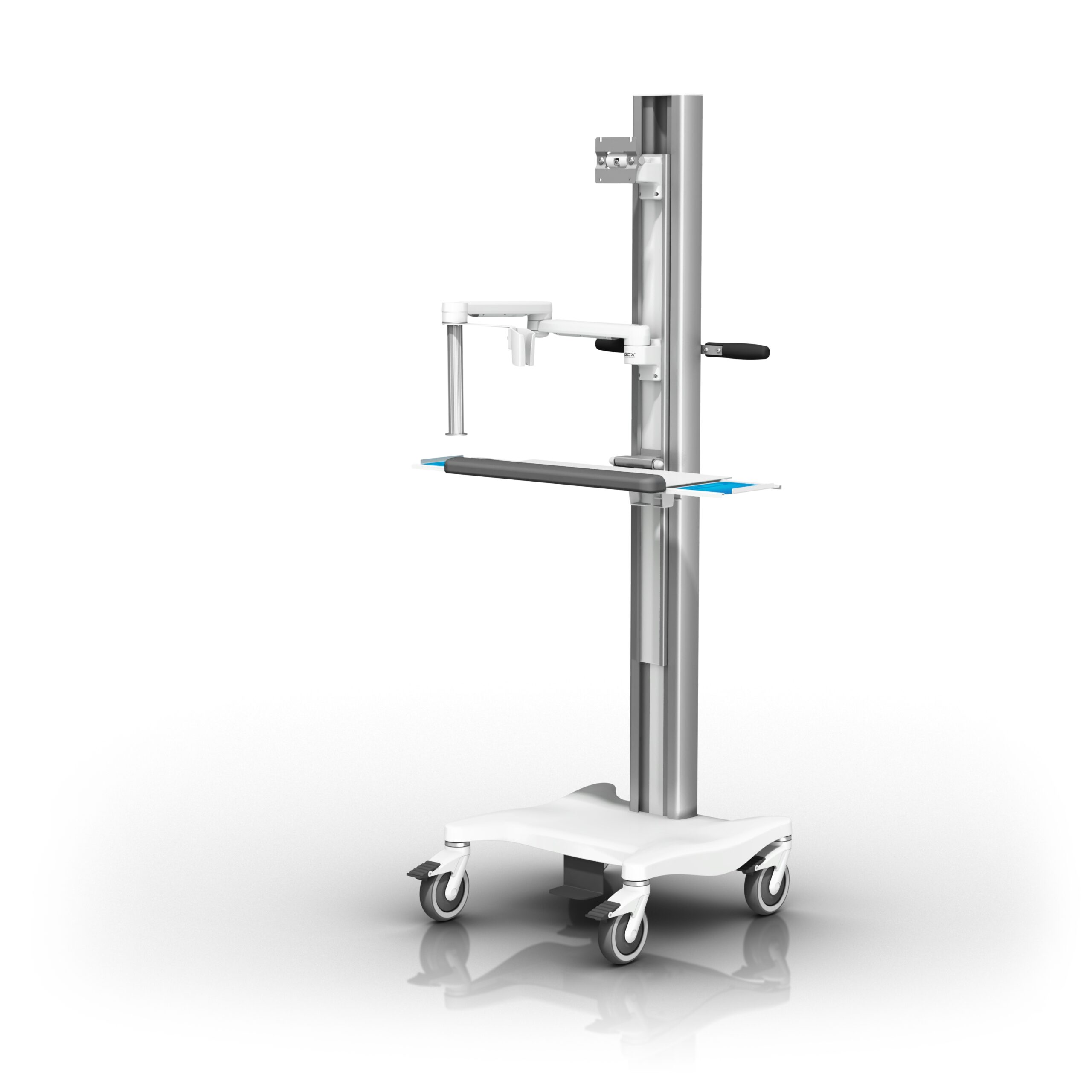

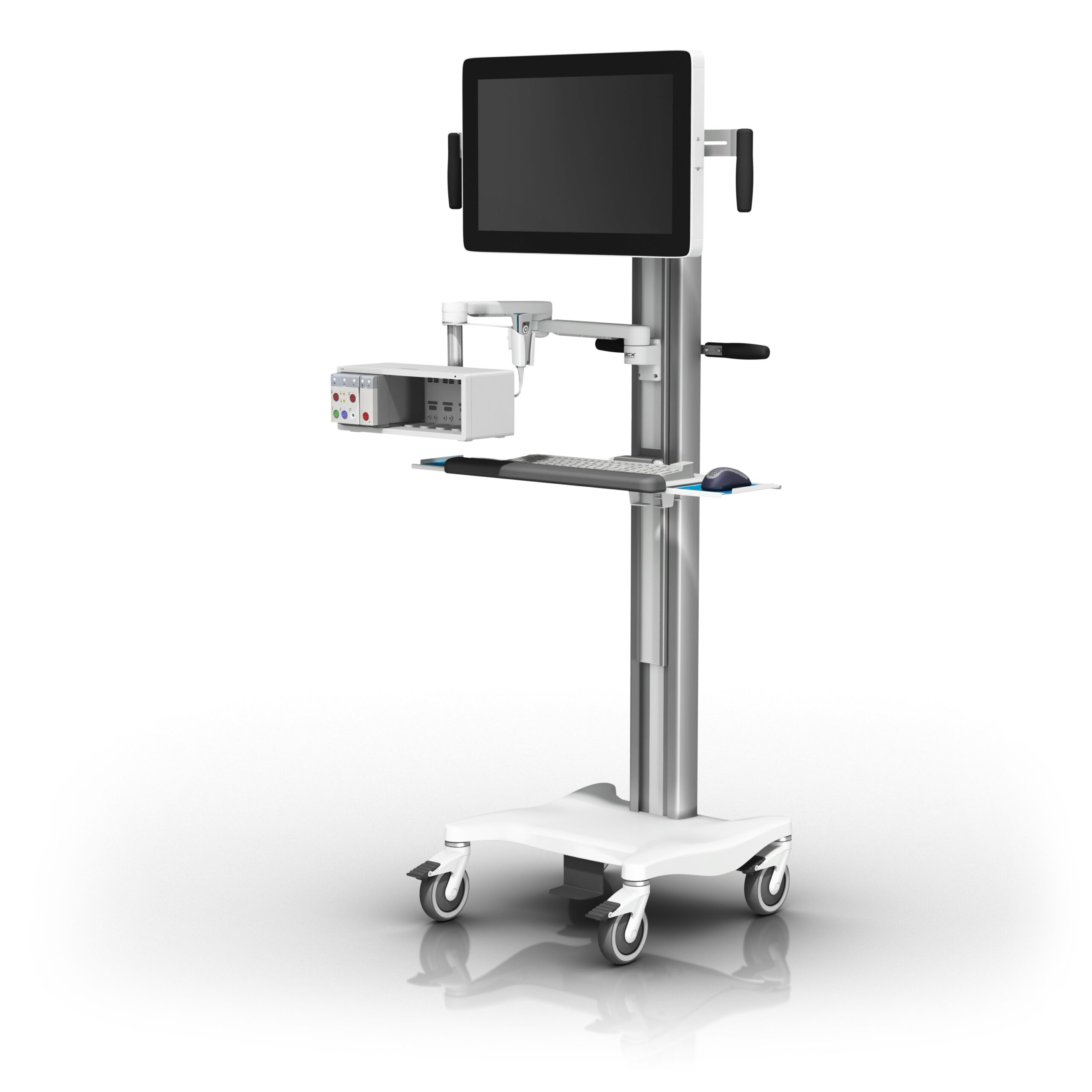

Mindray N19/N22 on VHRC Variable Height Roll Cart

Details

Part Number

VHRC 60 to 70 lbs / 27.2 to 31.8 kg Weight Range

Variable Height Roll Cart
The integrated channel accepts all GCX channel mounting components
Cart overall height 64.5″ / 163.8 cm
40″/101.6 cm vertically adjusting channel offers 16″ / 40.6 cm height adjustment
18 x 18″ / 45.7 x 45.7 cm base
5″ / 12.7 cm Diameter casters (4 locking) for easy transition over uneven surfaces.
Foot pedal height adjustment with gas spring assisted control
Integrated cable management

NOTE: Calculate total weight of the device and mounts to determine the correct VHRC part number. Contact a GCX representative for configuration assistance.

The integrated GCX channel accepts all GCX channel mounting components.
Overall Cart Height: 64.5″ / 163.8 cm
Vertically adjusting channel measures 40″/101.6 cm and offers 16″ / 40.6 cm height adjustment.
Base Dimensions: 20.2 x 20.2” / 51.3 x 51.3 cm
5″/12.7 cm diameter casters (4 locking) for easy transition over uneven surfaces.
Foot pedal height adjustment with gas spring assisted control

RST-0007-158

Details

Part Number

VHRC Series Counterweight Kit

25 lbs / 11.3 kg counterweight kit
Required for VHRC/RC configurations with dual monitors or a patient monitor

RST-0007-22

Details

Part Number

12 x 12” / 30.5 x 30.5 cm Polyquip M Series Articulating Arm

GCX Part Number MND-0008-03

12 x 12” / 30.5 x 30.5 cm Articulating Arm
Max Load: 15 lb /6.8 kg
19” / 48.2 cm Seismic Wall Channel included

GCX Part Number: MND-0008-03

Maximum Load: 30 lb / 13.6 kg
Includes 19” / 48.3 cm Seismic Channel

MND-0008-03

Mindray P/N: Mindray

FLP 0009 04 Generic Monitor Wall Channel U

Details

Part Number

Flush Mount with Tilt and Swivel

Flush mount permits mounting in areas with limited clearance and/or space
Provides 5.3” / 13.5 cm clearance from the wall
Tilt and swivel adjustment
VESA® FDMI™ 75/100 mm compatible
Tilt Mechanism Maximum Load: 30 lbs / 13.6 kg
Product weight: 1.5 lbs / .7 kg

NOTE: Channel sold separately.

Flush mount for areas with limited clearance or space
Clearance from wall: 5.3″ / 13.5 cm
Tilt/swivel adjustment
VESA® FDMI™ 75/100 mm compatible
Max. load, tilt mechanism: 30 lb / 13.6 kg
Product Weight: 1.5 lb / .7 kg

Note: Channel sold separately

FLP-0009-04

Monitor Handle FLP 0008 64 Wide Screen U

Details

Monitor Handles

Part Number

Monitor Handles

Works with GCX display mounts to allow easy position adjustments for the display without having to grab the display enclosure
12 – 25″ / 30 – 63 cm Wide
Vertical, lateral and tilt adjustments are facilitated by the padded grips located to the left and right sides
Padded grip handles can be installed facing up or down
Mounts between display and GCX mounting plate
Product weight: 3.4 lb / 1.5 kg

Works with GCX display mounts to allow easy position adjustments for the display without having to grab the display enclosure
12 – 25″ / 30 – 63 cm Wide
Vertical, lateral and tilt adjustments are facilitated by the padded grips located to the left and right sides
Padded grip handles can be installed facing up or down
Mounts between display and GCX mounting plate
Product weight: 3.4 lb / 1.5 kg

FLP-0008-64

VHRC Slide In Key Board Loaded Closed Web

Details

Part Number

Slide-Out VHRC/RC Keyboard Tray with Negative/Positive Tilt

Slide-out keyboard tray with padded wrist rest
Keyboard tray 20.8 x 8″ / 52.8 x 20.3 cm with left/right slide out mouse trays and mouse pads (2) with adhesive backing
Product weight: 18.2 lbs / 8.3 kg
RST-0007-35 includes negative/positive tilt – includes tilt lock out (eliminate either negative or positive tilt, making undesired tilt unavailable)

RST-0007-35

VHRC Rear Column Mounted Dual Grip Handle Loaded

Details

Part Number

VHRC/RC Series Rear Column Dual Grip Handle

VHRC Series rear column dual handle with padded grips
Product weight: 1.2 lb / .54 kg

Mounts to the VHRC Series rear column
Weight: 1.2 lb / .54 kg

RST-0007-24

Details

Part Number

Fluted Post Mounting Kit for SMR Module Housing

GCX Part Number MND-0004-05

Kit for Module Server/Satellite Rack
Supports Mindray SMR

GCX Part Number MND-0004-05

Kit for Module Server/Satellite Rack
Supports Mindray SMR

MND-0004-05

Mindray P/N: Mindray

Details

Part Number

Barcode Scanner Mount for VHM/M Series Arms

Jadack HS-1 barcode scanner mount
Mounts directly to the swivel cup

BCR-0002-01

Mindray P/N: Mindray
